Components Location

WARNING: This page is about a different car, the 2016 Hyundai Elantra GT and 2015 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

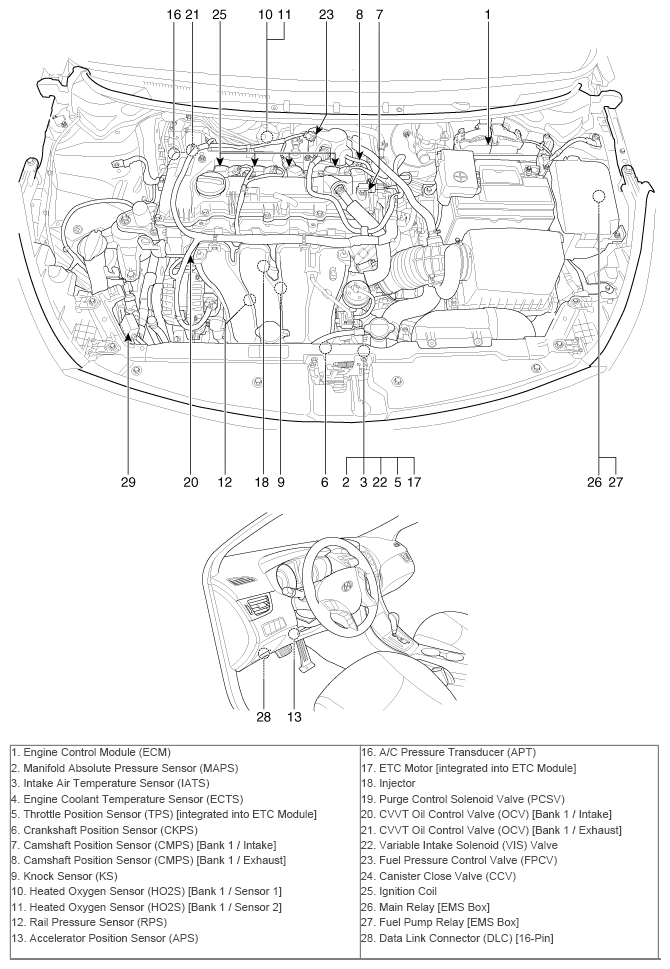

Fig 1: Engine Control System Components Location

Courtesy of HYUNDAI MOTOR AMERICA

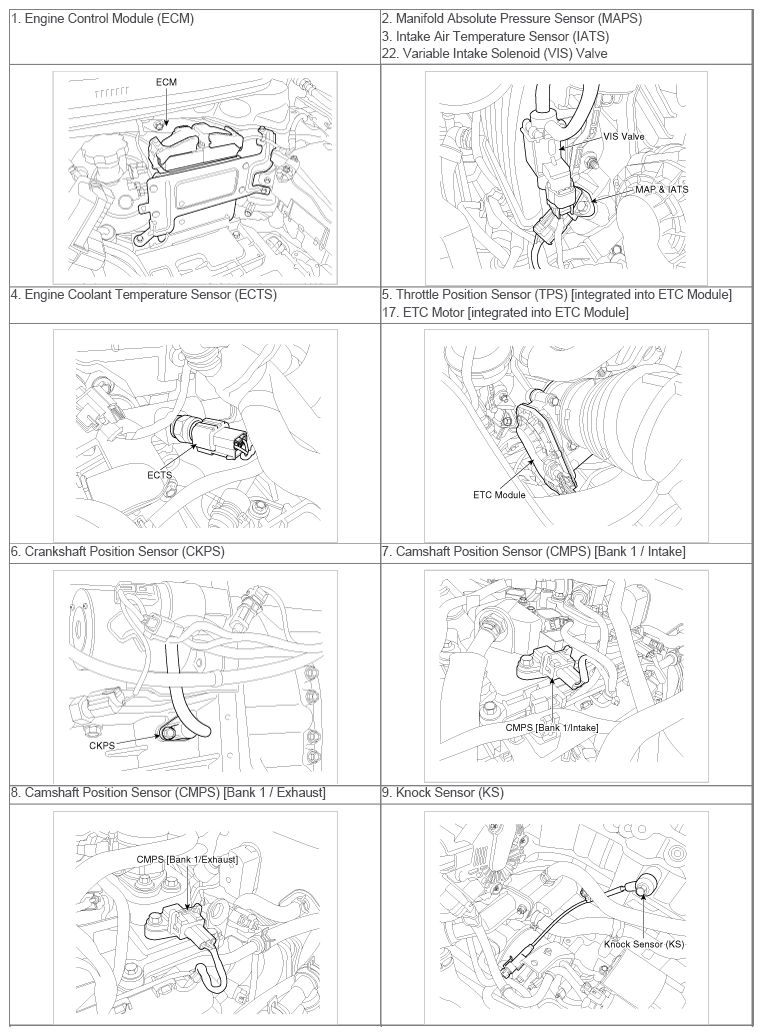

Fig 2: ECM, ECTS And Variable Intake Solenoid Valve Components Location

Courtesy of HYUNDAI MOTOR AMERICA

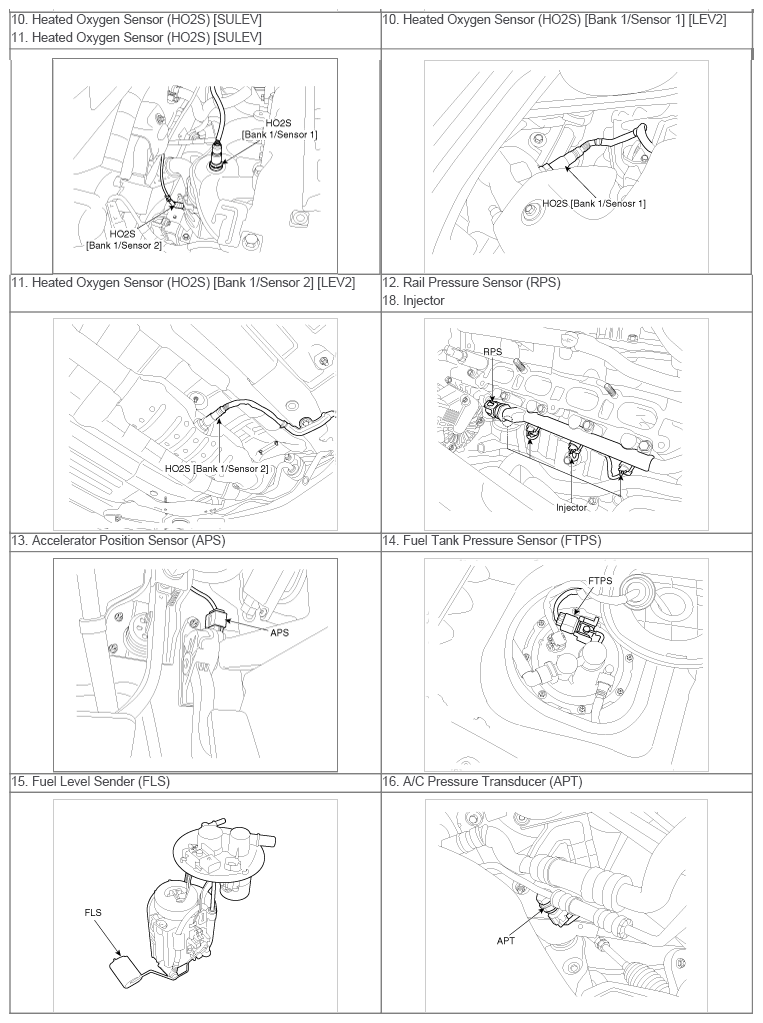

Fig 3: HO2S, RPS And Injector Components Location

Courtesy of HYUNDAI MOTOR AMERICA

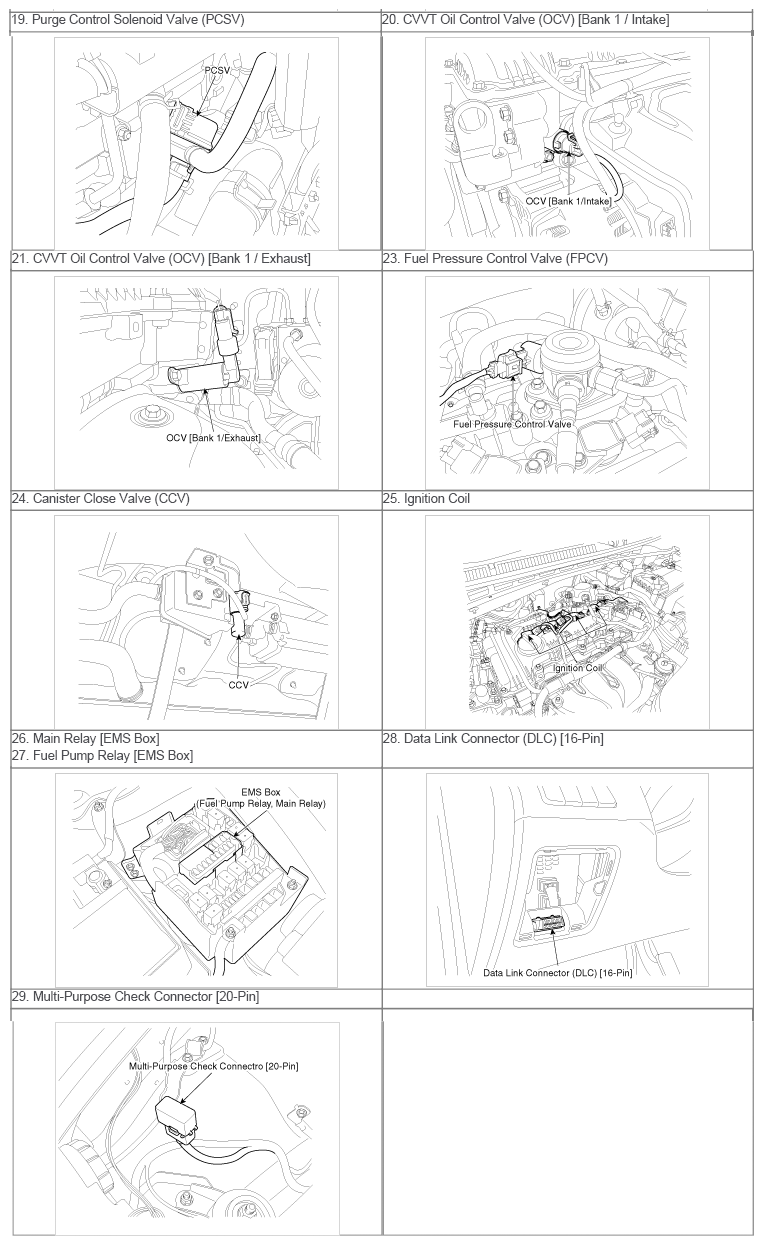

Fig 4: FPCV, Ignition Coil And CCV Components Location

Courtesy of HYUNDAI MOTOR AMERICA
