Monitor ScanTool Data

WARNING: This page is about a different car, the 2016 Hyundai Elantra GT and 2015 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Connect GDS.
IG "ON" and engine "OFF".
Select "DTC Analysis" mode.
After erase DTC, keep the vehicle condition within "the Enable Conditions" (Refer to: "DTC DETECTING CONDITION " table).

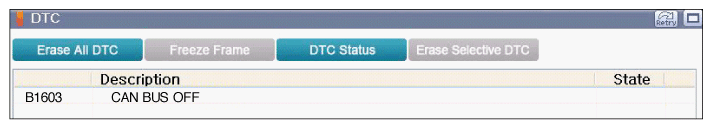

Fig 1: Selecting DTC Analysis Mode
Courtesy of HYUNDAI MOTOR AMERICA
Is the same DTC occurred again?
YES
- Proceed to next procedure.
NO
- Fault is intermittent caused by poor contact in the BCM's connector or was repaired and BCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then Proceed to "VERIFICATION OF VEHICLE REPAIR " procedure.
