Components Location (1)

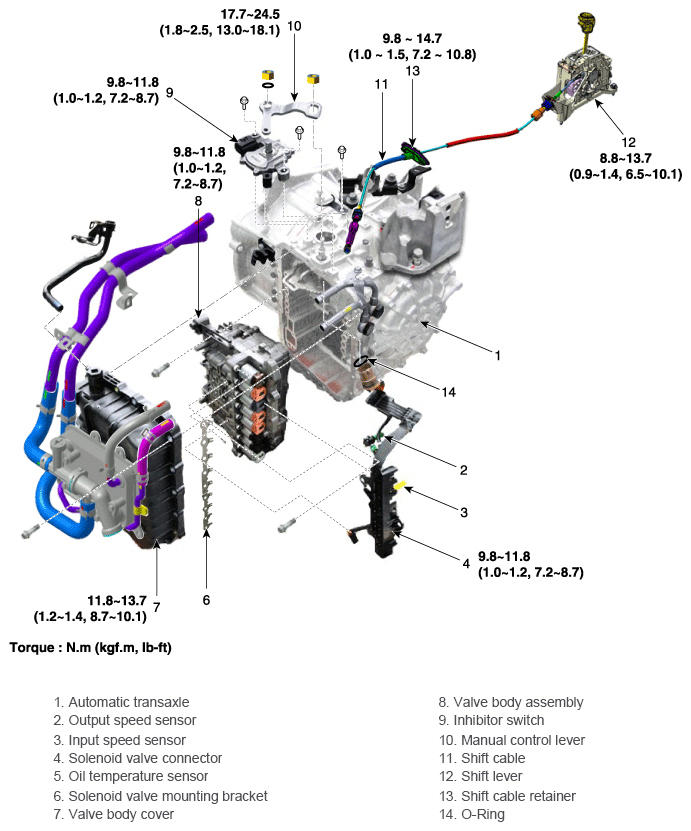

Fig 1: Automatic Transaxle Components With Torque Specifications
G11995701Courtesy of HYUNDAI MOTOR AMERICA
