Engine Control System - 1.6L (Except HEV)
>>
Components And Components Location
>>
Components Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components Location

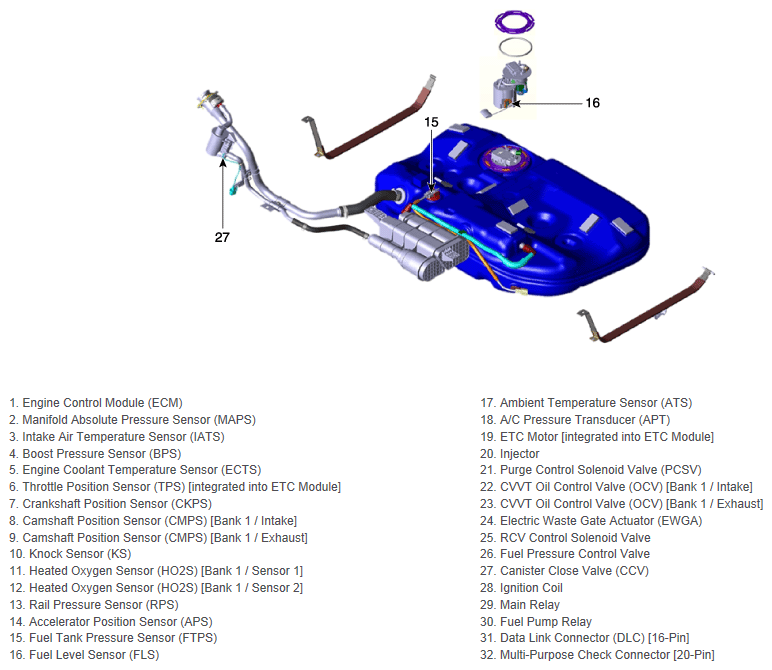

Fig 1: Engine Control System Components (1 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

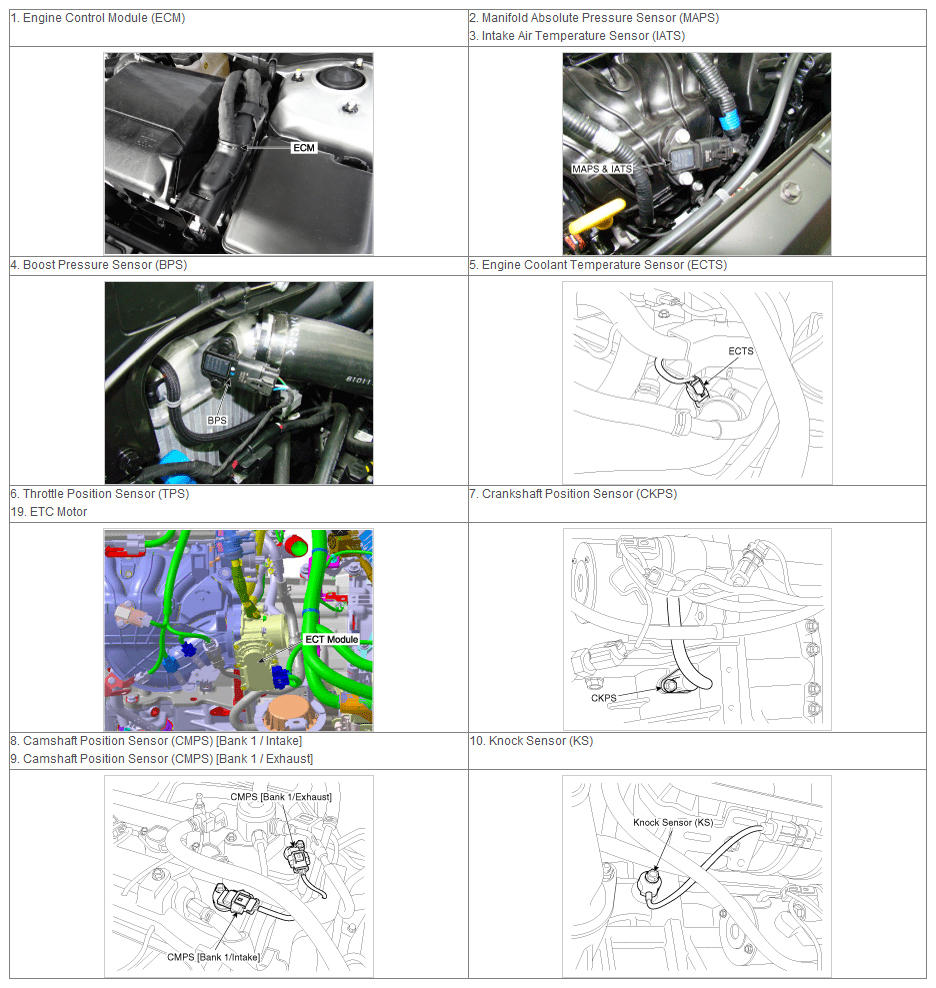

Fig 2: Engine Control System Components (2 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

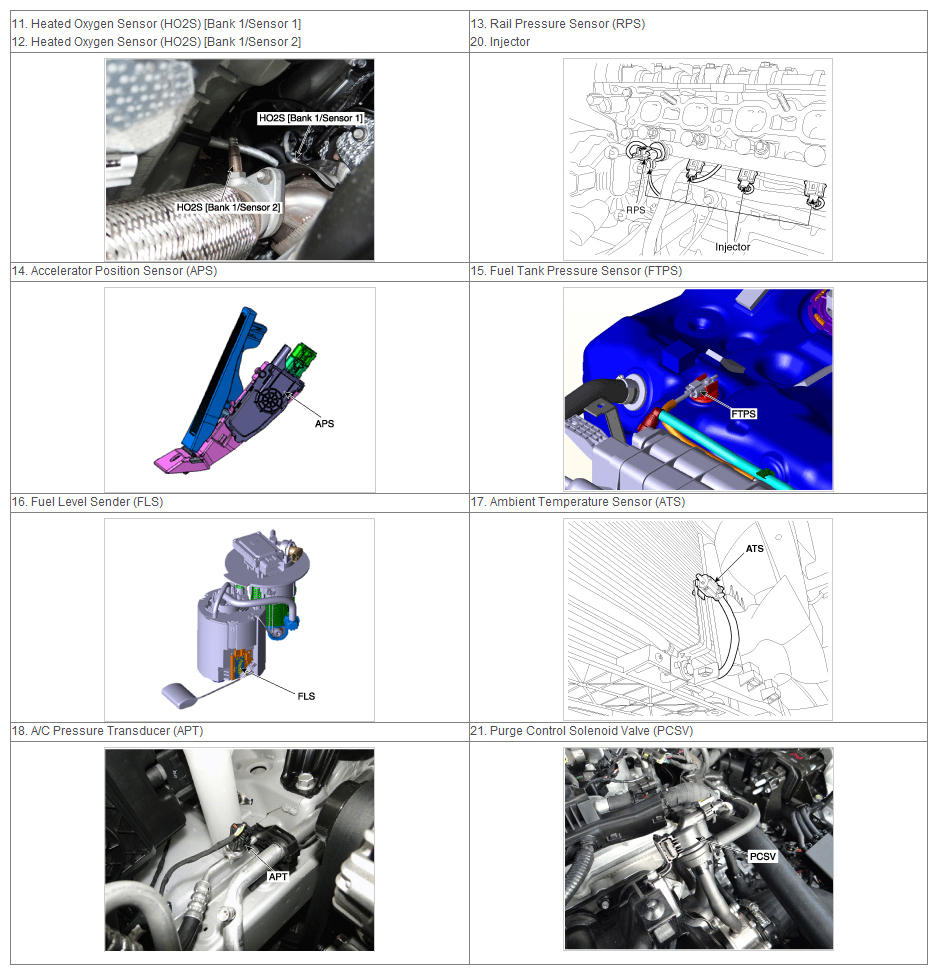

Fig 3: Engine Control System Components (3 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

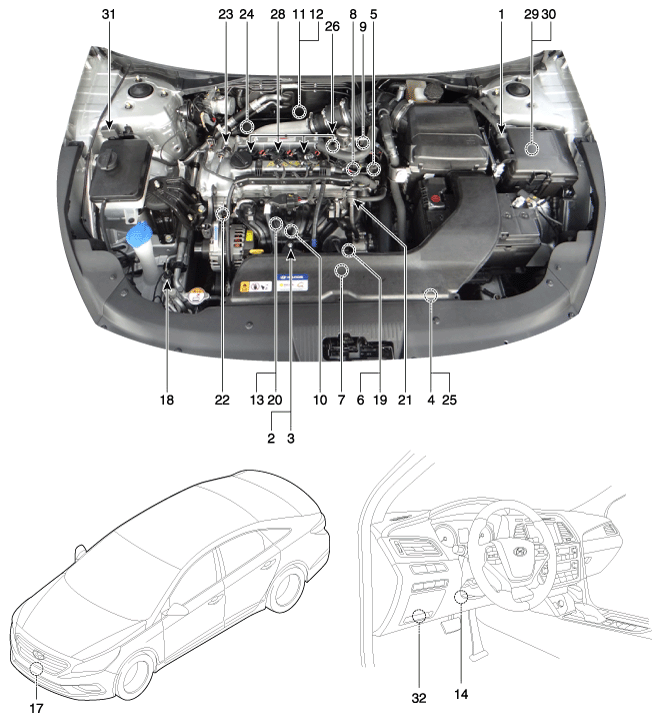

Fig 4: Engine Control System Components (4 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

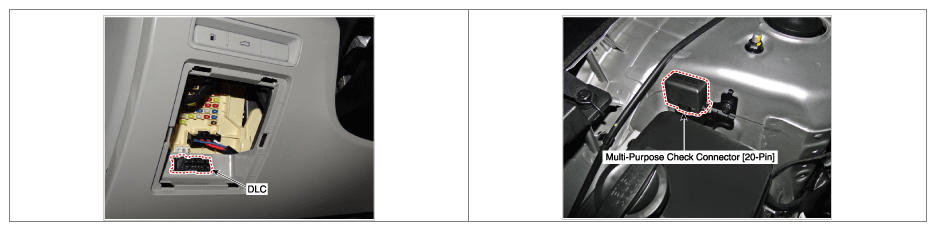

Fig 5: Engine Control System Components (5 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

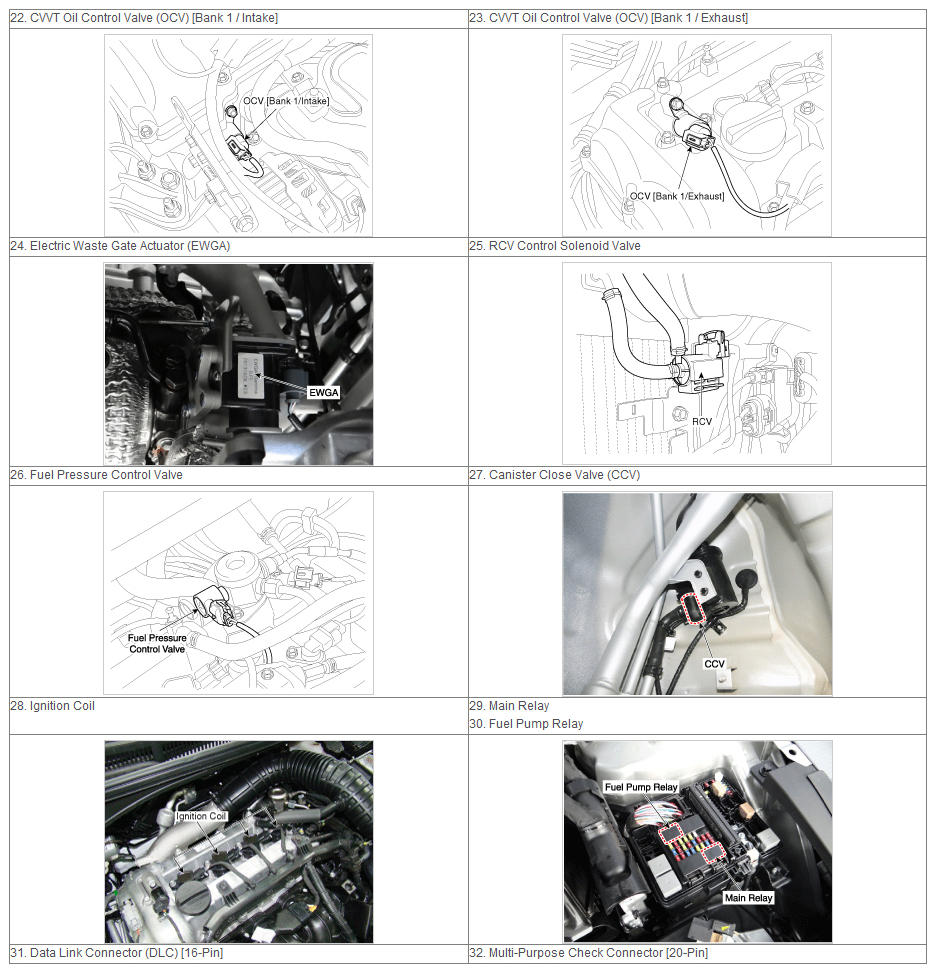

Fig 6: Engine Control System Components (6 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
