Driver Power Window Switch

Fig 1: Driver Power Window Switch Connector Terminals Identification (1 Of 2)
G11633104Courtesy of HYUNDAI MOTOR AMERICA

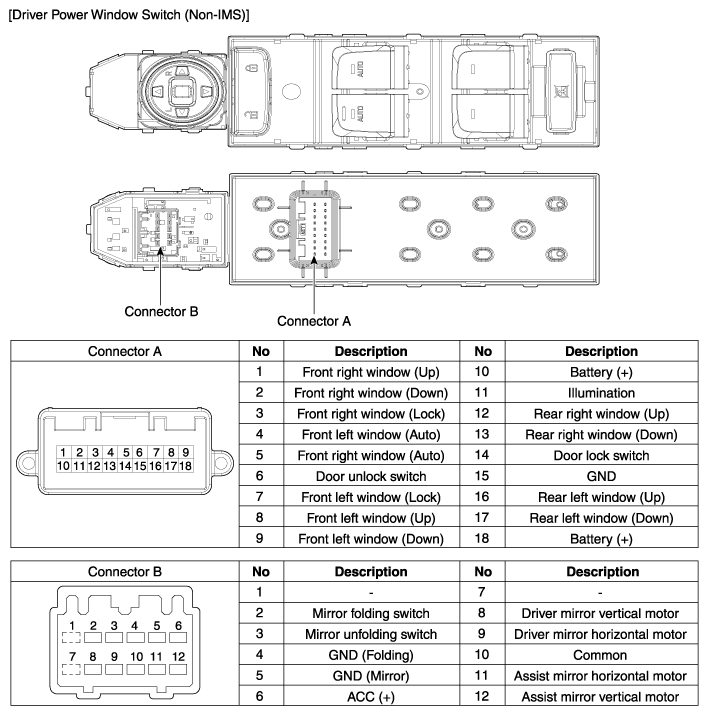

Fig 2: Driver Power Window Switch Connector Terminals Identification (2 Of 2)
G11633105Courtesy of HYUNDAI MOTOR AMERICA
