Driver Power Window Switch (Non-IMS, Front Safety)

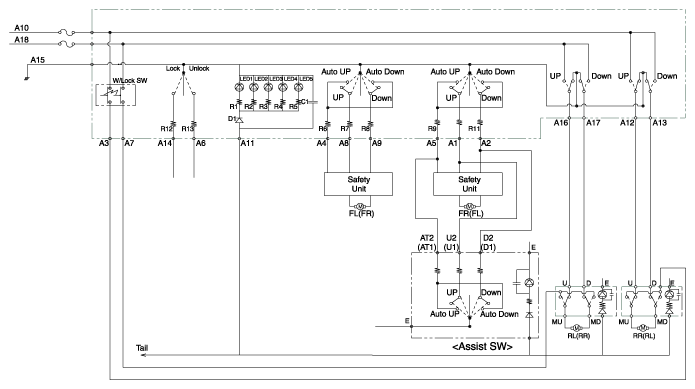

Fig 1: Driver Power Window Switch (Non-IMS, Front Safety) Circuit Diagram
G11633111Courtesy of HYUNDAI MOTOR AMERICA
