Circuit Diagram

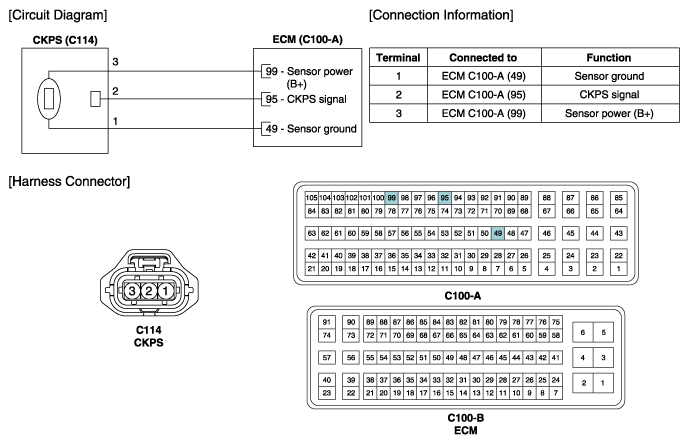

Fig 1: Crankshaft Position Sensor Schematic Diagrams
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
