Components And Components Location: Component

WARNING: This page is about a different variant/trim than selected.

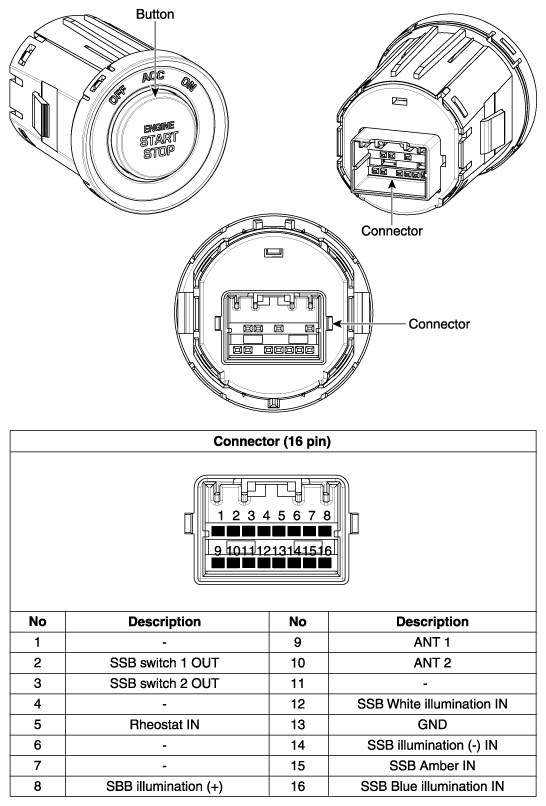

Fig 1: Start/Stop Button Connector Terminal And Description Chart
G12063098Courtesy of HYUNDAI MOTOR AMERICA
