Circuit Diagram

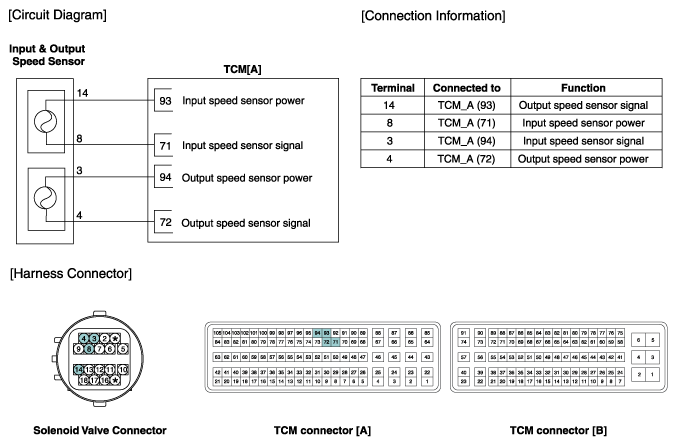

Fig 1: Input Speed Sensor Circuit Diagram And Connector End View
G11631291Courtesy of HYUNDAI MOTOR AMERICA
