Sonata Plug-In Hybrid
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System (PHEV)
>>
Shift Lever
>>
Schematic Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagrams

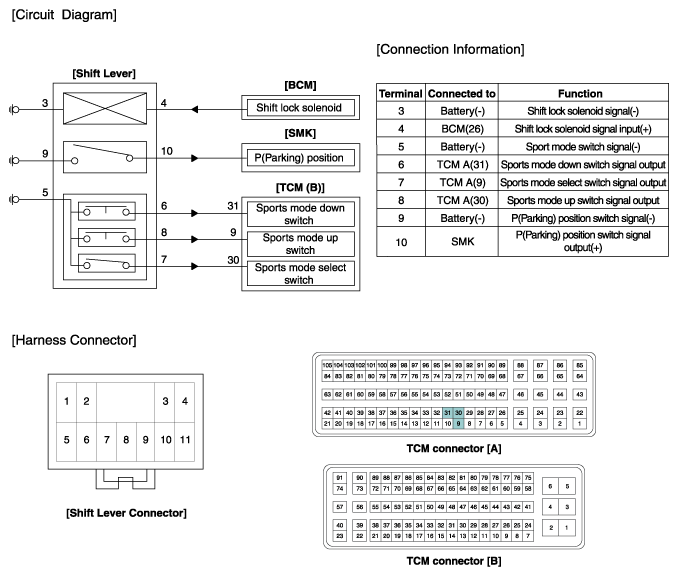

Fig 1: Shift Lever Schematic Diagrams and Connector End View
