Circuit Diagram

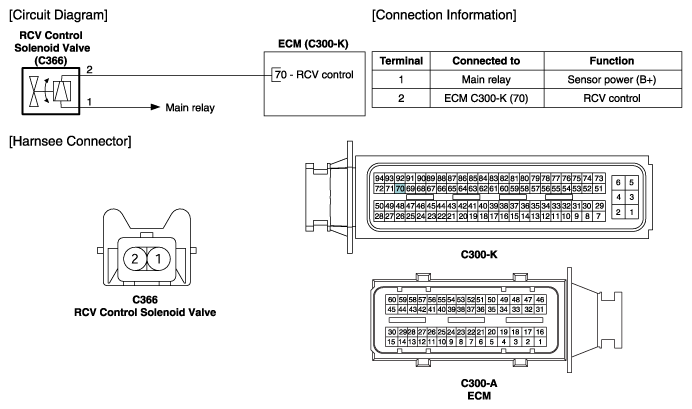

Fig 1: Recirculation Valve Control Solenoid Valve Circuit, Connector Terminals And Description Chart
G12039438Courtesy of HYUNDAI MOTOR AMERICA
