Components And Components Location: Components: Notes

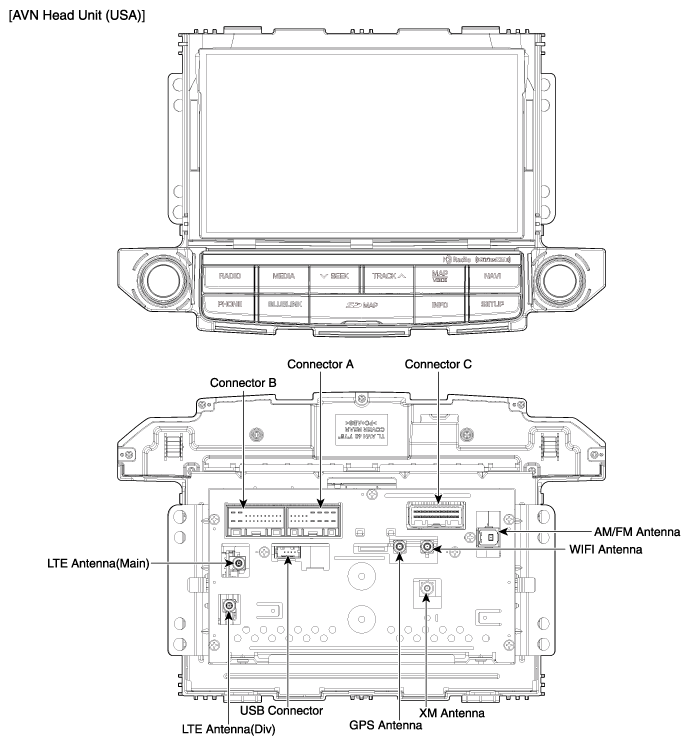

Fig 1: AVN Head Unit Components (USA)
G12042638Courtesy of HYUNDAI MOTOR AMERICA

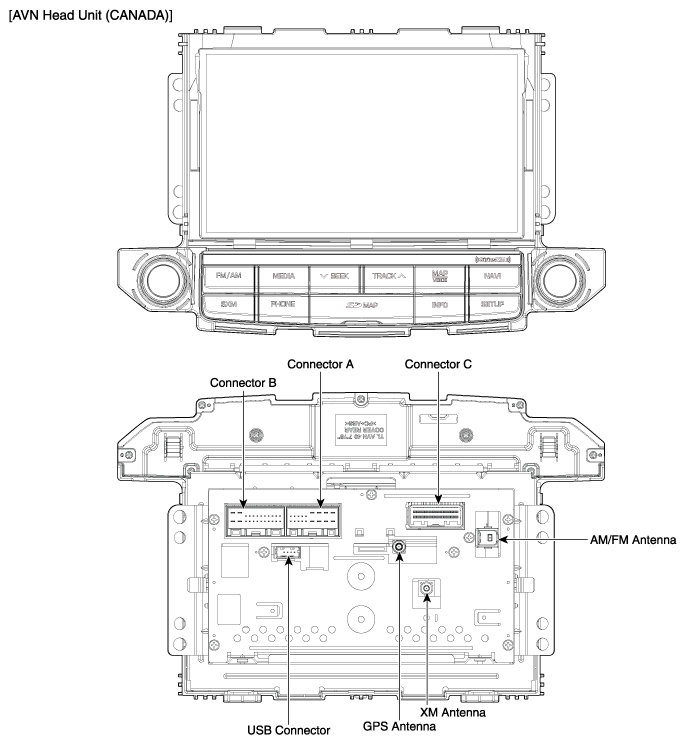

Fig 2: AVN Head Unit Components (CANADA)
G12042639Courtesy of HYUNDAI MOTOR AMERICA
