Monitor GDS Data

1. Connect GDS to DLC (Data Link Cable).
2. Warm up the engine to normal operating temperature.
3. Monitor "APS" parameter on the "Current Data" with GDS.

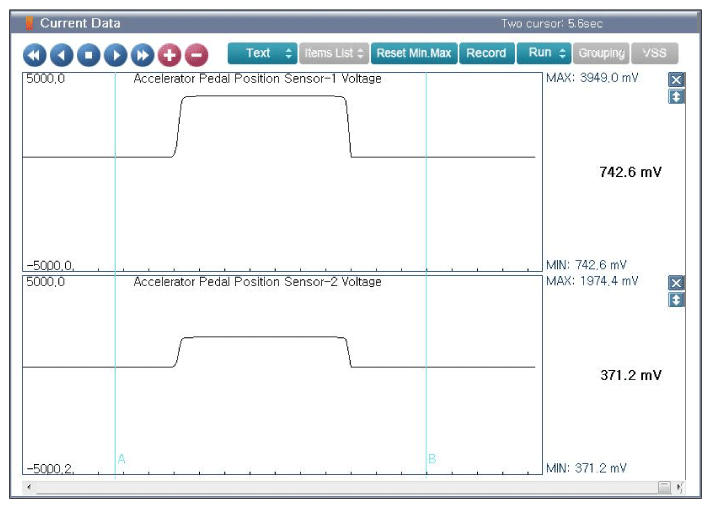

   Fig 1: Monitoring APS Parameter On Current Data With GDS (1 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA

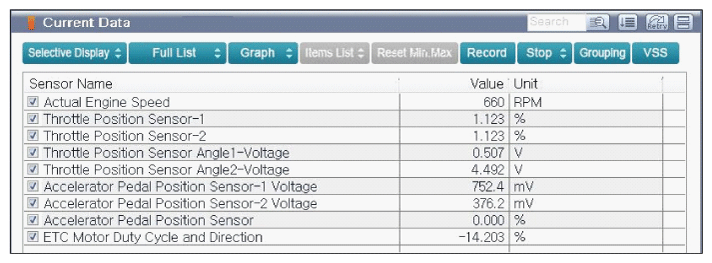

   Fig 2: Monitoring APS Parameter On Current Data With GDS (2 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA
4. Are the parameters displayed correctly?

YES

• Fault is intermittent caused by poor contact in the sensor's and/or ECM connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair " procedure.

NO

• Go to "Terminal and Connector inspection " procedure.
