Variant Coding Procedure

■ On-Line Type on GDS

1. Turn the ignition switch OFF.
2. Connect the GDS.
3. Turn the ignition switch ON without the engine running.
4. Select vehicle name and airbag system.
5. Select variant coding mode.
6. Follow the steps on the screen below.

1. Initial ACU Variant Coding screen

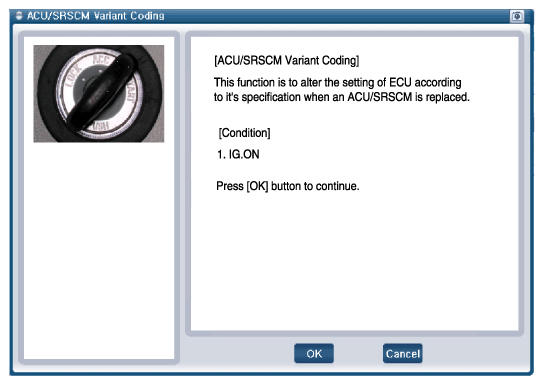

   Fig 1: Screen Display - Initial ACU Variant Coding

   Courtesy of HYUNDAI MOTOR AMERICA
2. VIN Code entering screen

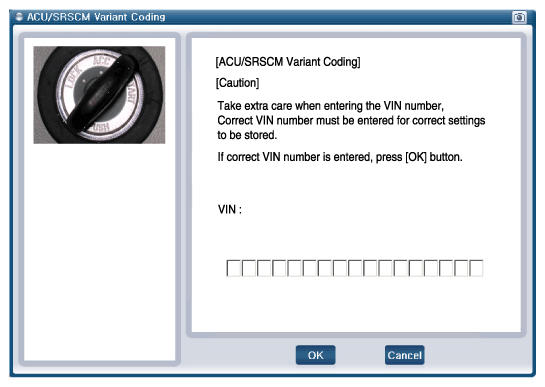

   Fig 2: Screen Display - VIN Code Entering

   Courtesy of HYUNDAI MOTOR AMERICA
3. Variant Coding's proceeding screen-1

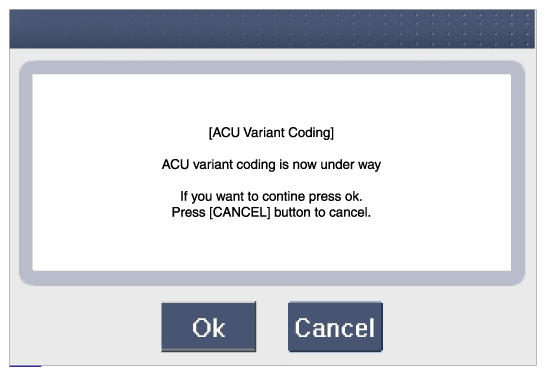

   Fig 3: Screen Display - Variant Coding Proceeding Screen - 1

   Courtesy of HYUNDAI MOTOR AMERICA
4. Variant Coding's proceeding screen-2

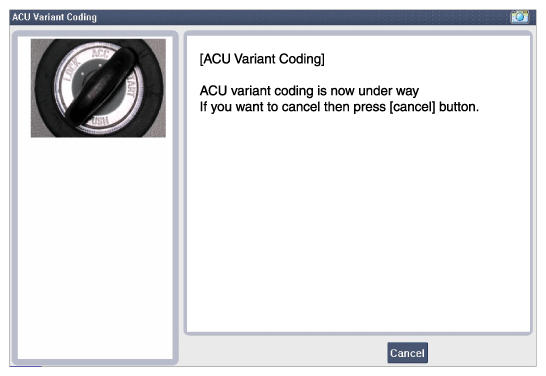

   Fig 4: Screen Display - Variant Coding Proceeding Screen - 2

   Courtesy of HYUNDAI MOTOR AMERICA
5. Variant Coding is completed

NOTE:

1. This screen is shown when you try variant coding on the SRSCM which has been performed before. (Refer to - "Fig 5").
   Fig 5: Screen Display - ACU/SRSCM Variant Coding

   Courtesy of HYUNDAI MOTOR AMERICA
2. This screen is shown when communication failure has occurred. (Refer to - "Fig 6").

Fig 6: Screen Display - ACU/SRSCM Variant Coding

Courtesy of HYUNDAI MOTOR AMERICA

■ Off-Line Type on GDS (Use when not connected to the internet)

1. Turn the ignition switch OFF.
2. Connect the GDS.
3. Turn the ignition switch ON without the engine running.
4. Select vehicle name and airbag system.
5. Select variant coding mode.
6. Follow the steps on the screen below.

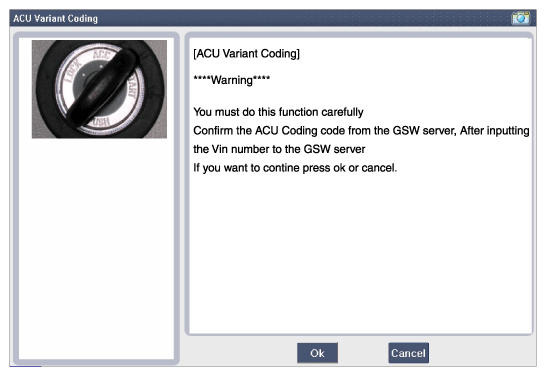

1. Initial ACU Variant Coding screen

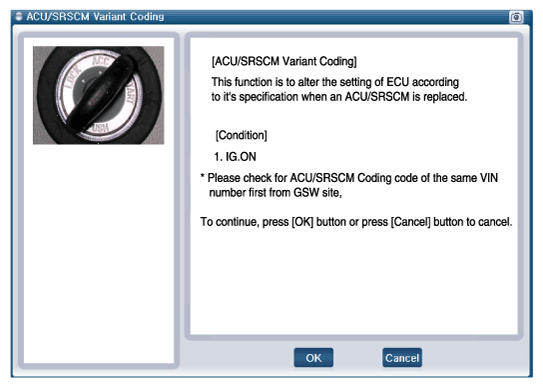

   Fig 7: Screen Display - Initial ACU Variant Coding

   Courtesy of HYUNDAI MOTOR AMERICA
2. ACU Coding Code entering screen

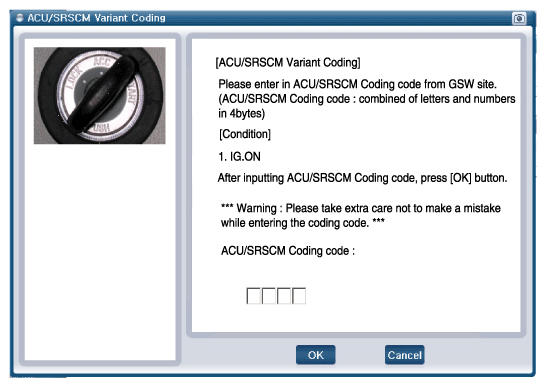

   Fig 8: Screen Display - ACU Coding Code Entering

   Courtesy of HYUNDAI MOTOR AMERICA
3. Rechecking ACU Coding Code entering screen

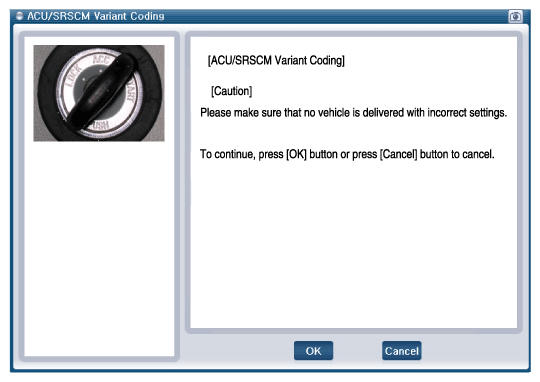

   Fig 9: Screen Display - Rechecking ACU Coding Code Entering

   Courtesy of HYUNDAI MOTOR AMERICA
4. Variant Coding's proceeding screen-1

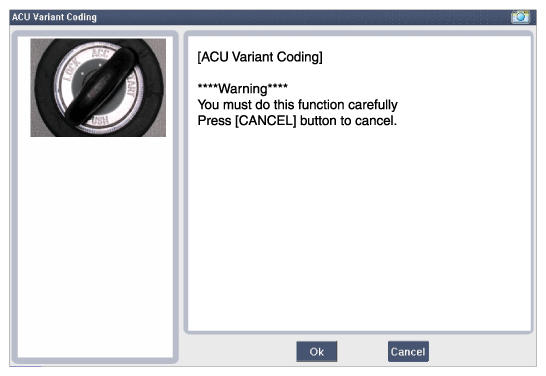

   Fig 10: Screen Display - Variant Coding Proceeding Screen - 1

   Courtesy of HYUNDAI MOTOR AMERICA
5. Variant Coding's proceeding screen-2
   Fig 11: Screen Display - Variant Coding Proceeding Screen - 2

   Courtesy of HYUNDAI MOTOR AMERICA
6. Variant Coding is completed

NOTE:

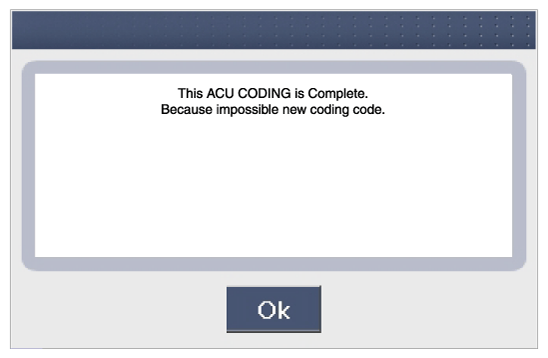

1. This screen is shown when you try variant coding on the SRSCM which has been performed before. (Refer to - "Fig 12").

Fig 12: Screen Display - ACU Coding Complete/Impossible New Coding Code

Courtesy of HYUNDAI MOTOR AMERICA
