Circuit Diagram

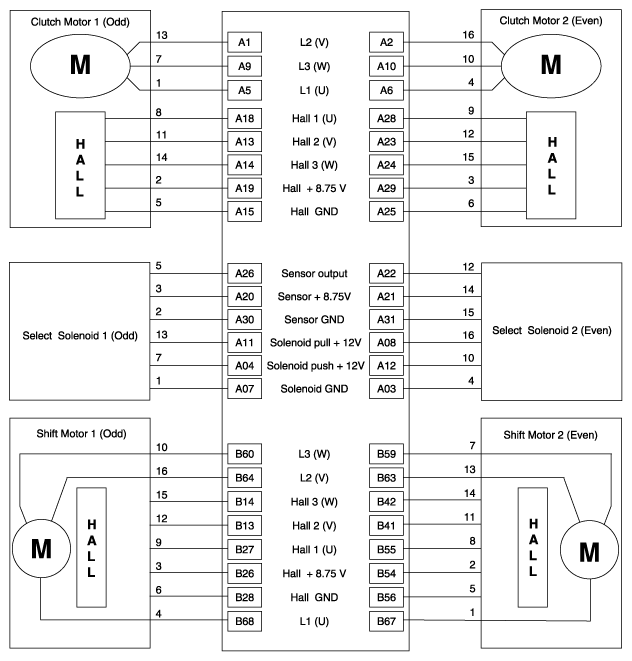

Fig 1: DCT Control Module Circuit (1 Of 2)
G12039563Courtesy of HYUNDAI MOTOR AMERICA

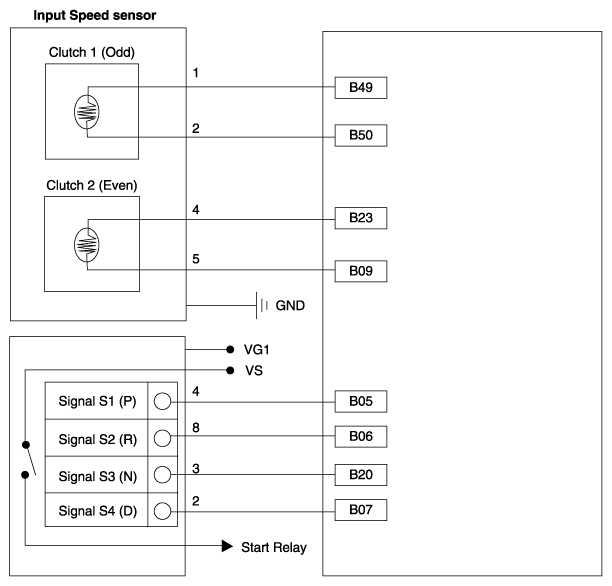

Fig 2: DCT Control Module Circuit (2 Of 2)
G12039564Courtesy of HYUNDAI MOTOR AMERICA
