Control System Logic

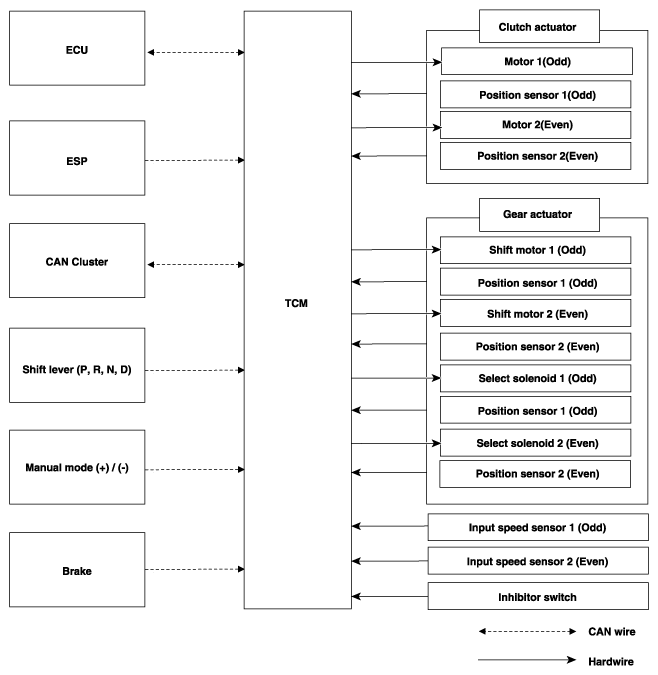

Fig 1: Dual Clutch Transmission Control System Communication Chart - Control System Logic
G12039560Courtesy of HYUNDAI MOTOR AMERICA
