Components And Components Location: Components

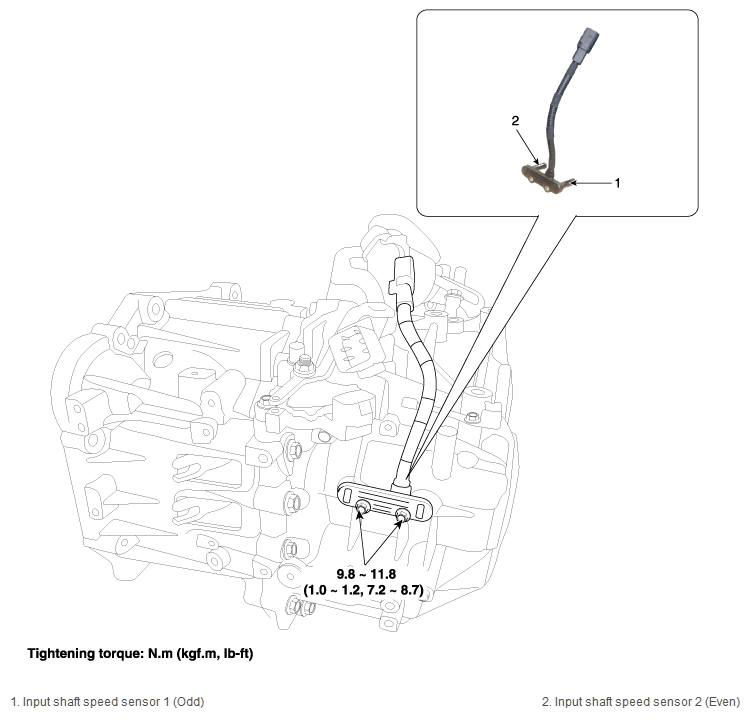

Fig 1: Input Shaft Speed Sensor 1 Components With Torque Specification
G12039612Courtesy of HYUNDAI MOTOR AMERICA
