System Block Diagram: Notes

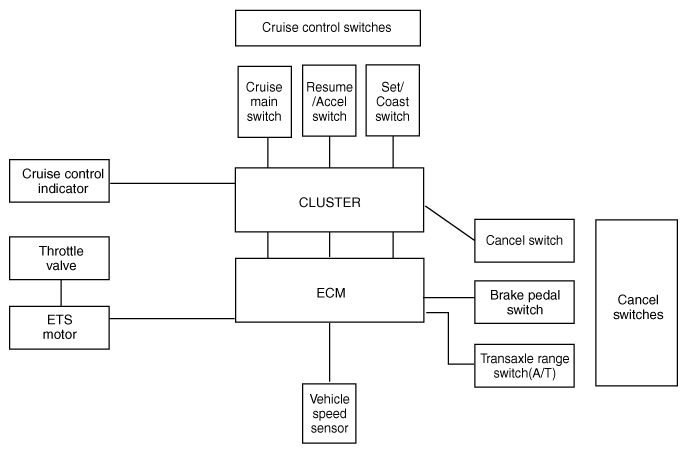

Fig 1: Cruise Control System Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
