Repair Procedures: Inspection

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the console upper cover.

    (Refer to Body - "FLOOR CONSOLE ")

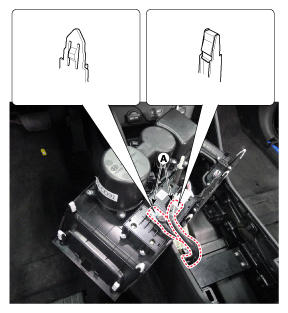

  3. Disconnect the connectors (A).
    Fig 1: Disconnecting Connectors
    G12041580Courtesy of HYUNDAI MOTOR AMERICA
  4. Check the continuity between the switch terminals as the DBC switch is engaged.
Fig 2: Checking Continuity Between DBC Switch Terminals
G12041581Courtesy of HYUNDAI MOTOR AMERICA
