Circuit Diagram

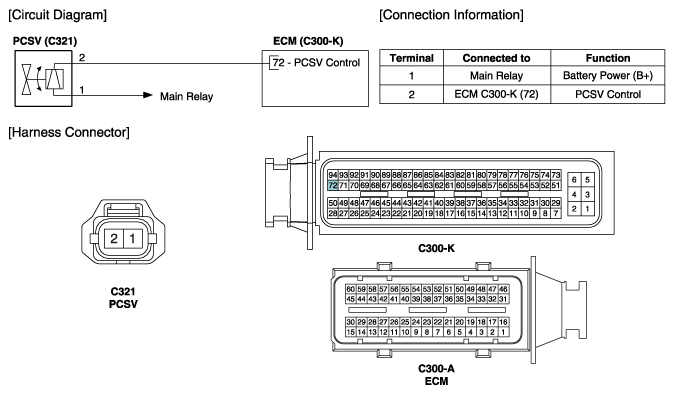

Fig 1: Purge Control Solenoid Valve Circuit, Connector Terminals And Description Chart
G12039418Courtesy of HYUNDAI MOTOR AMERICA
