Pressure Sensor Inspection Procedure

WARNING: This page is about a different variant/trim than selected.

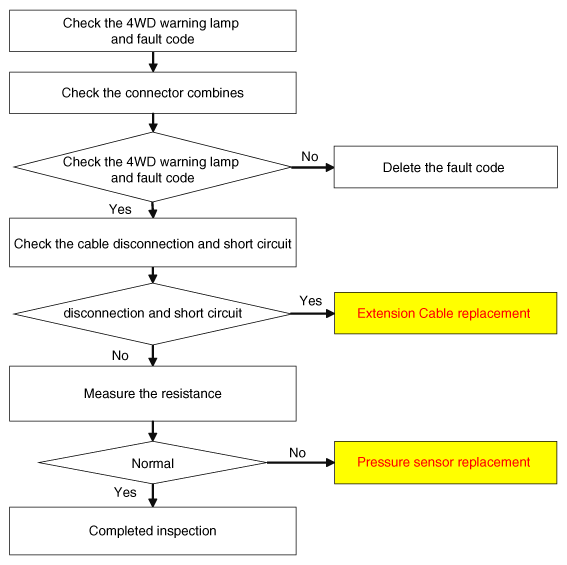

Fig 1: Pressure Sensor Inspection Procedure Chart
G12040920Courtesy of HYUNDAI MOTOR AMERICA
