Terminal Function

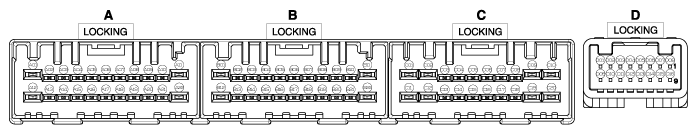

Fig 1: BCM Connector Terminals
G12041244Courtesy of HYUNDAI MOTOR AMERICA
Pin No Function
C10 IGN 2_Heated steering wheel power
C9 Heated steering wheel
D12 NTC (-)
B12 NTC (+)
D8 Heated steering wheel IND
