Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector In Driver Side Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart key code saving".

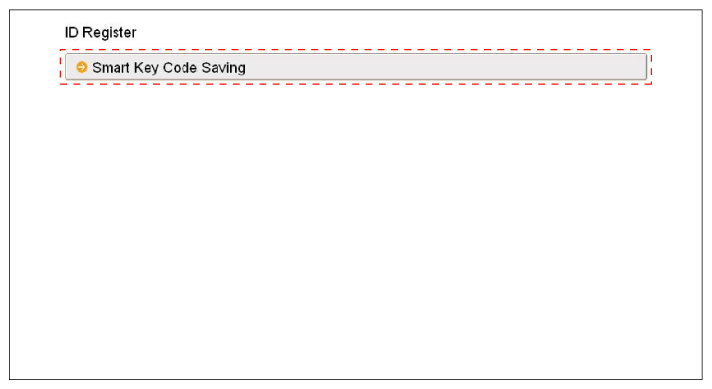

Fig 2: Screen Display - Selecting Smart Key Code Saving
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

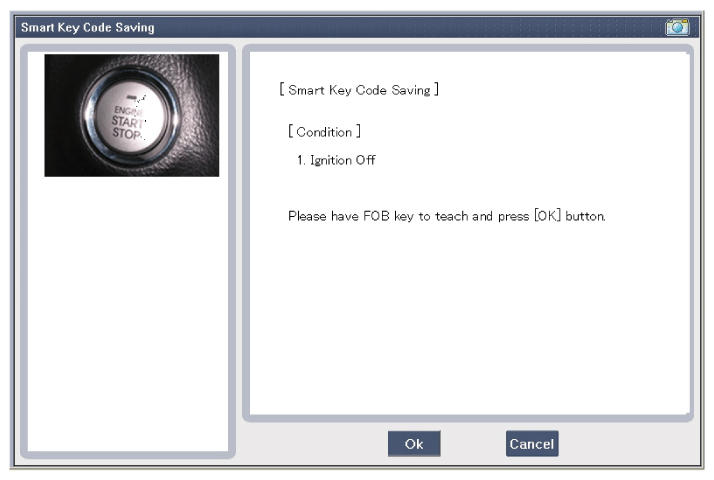

Fig 3: Screen Display - Smart Key Code Saving Ignition Off
Courtesy of HYUNDAI MOTOR AMERICA

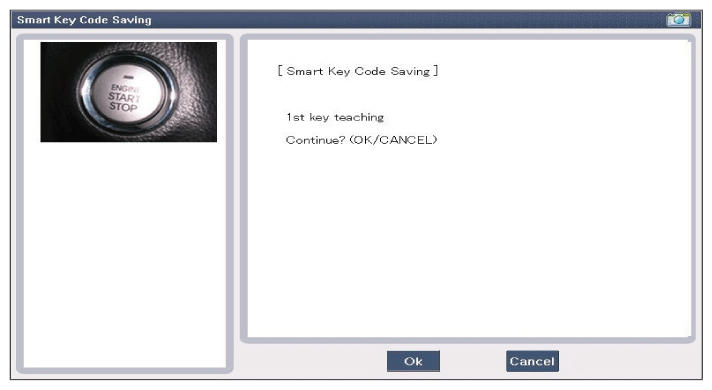

After pushing the SSB with the teaching key, press "OK" button.
Input the "Pin code" for first key teaching.

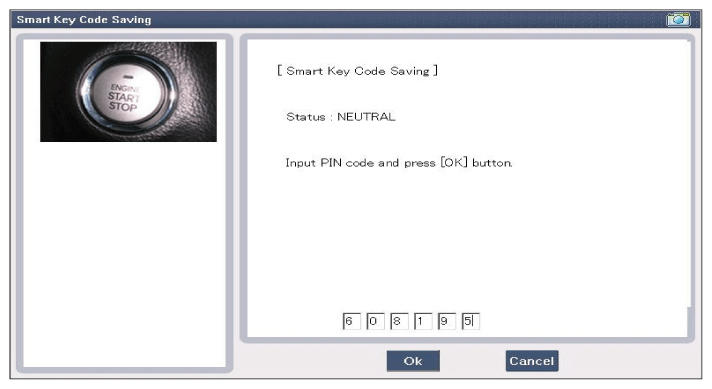

Fig 4: Screen Display - Smart Key Code Inputting Pin Code & Pressing Ok (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

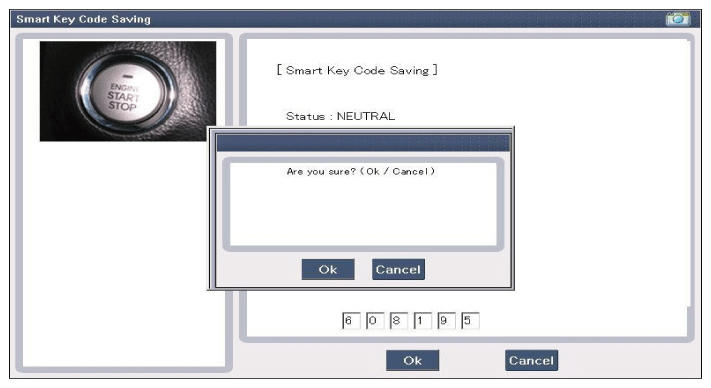

Fig 5: Screen Display - Smart Key Code Saving Proceeding Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First key teaching completed".

Fig 6: Screen Display - First Key Teaching Completed (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: Screen Display - First Key Teaching Completed Number Of Keys (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

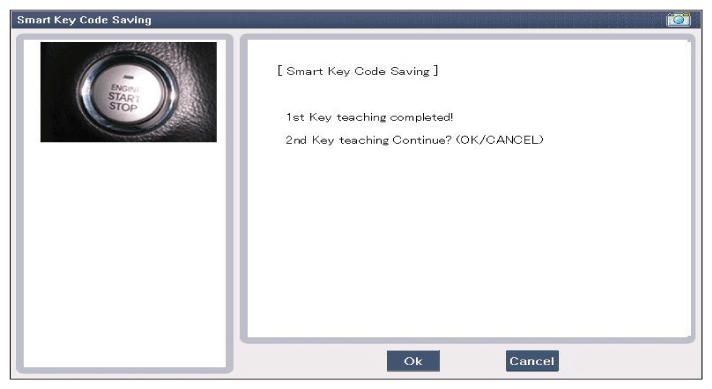

Fig 8: Screen Display - Second Key Teaching Continued (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

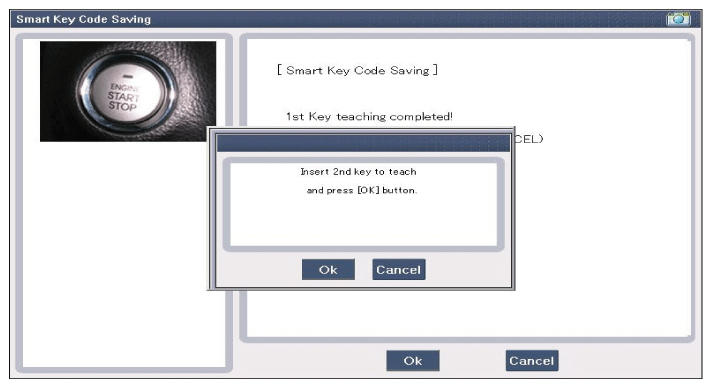

Fig 9: Screen Display - Inserting Second (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second key teaching completed".

Fig 10: Screen Display - Second Key Teaching Completed
Courtesy of HYUNDAI MOTOR AMERICA

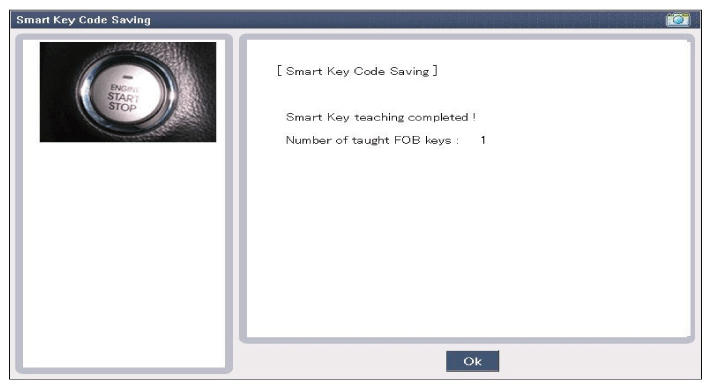

Then the screen will be shown as below when key teaching process is completed.
