Variant Coding (in case that the GDS is connected to the internet)

1. Connect GDS to Data Link Connector (DLC).
2. IG "ON".
3. Perform variant coding in "Vehicle S/W Management"  menu of the GDS. (Fig 1)

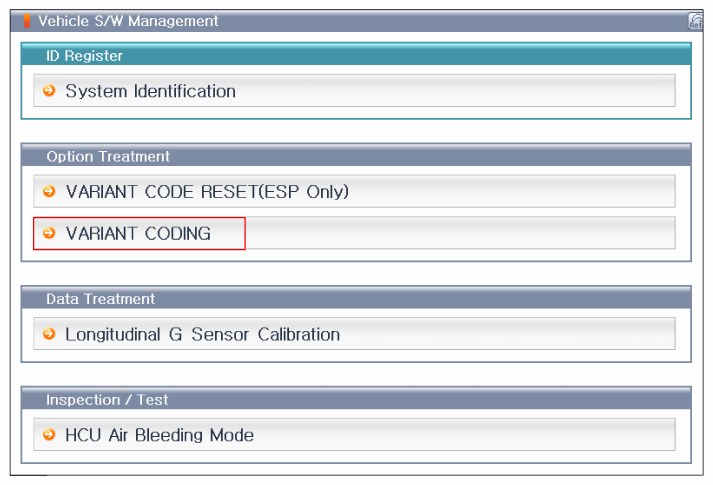

Fig 1: Screen Display - Selecting Variant Coding (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

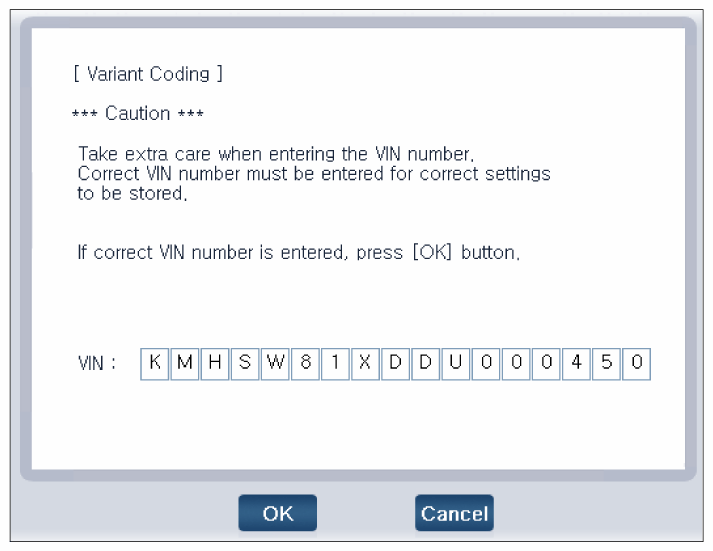

Fig 2: Screen Display - Entering VIN (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

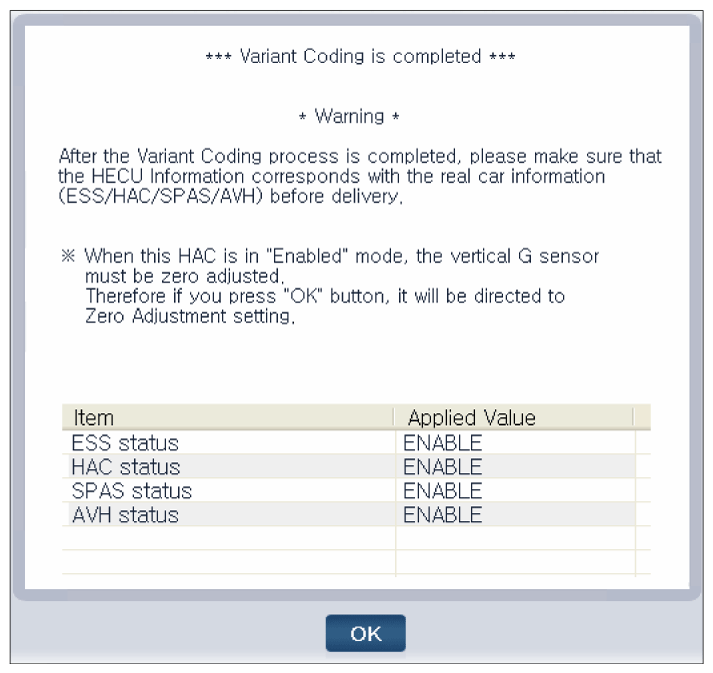

Fig 3: Screen Display - Variant Coding Completed (3 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA
