Components And Components Location: Components

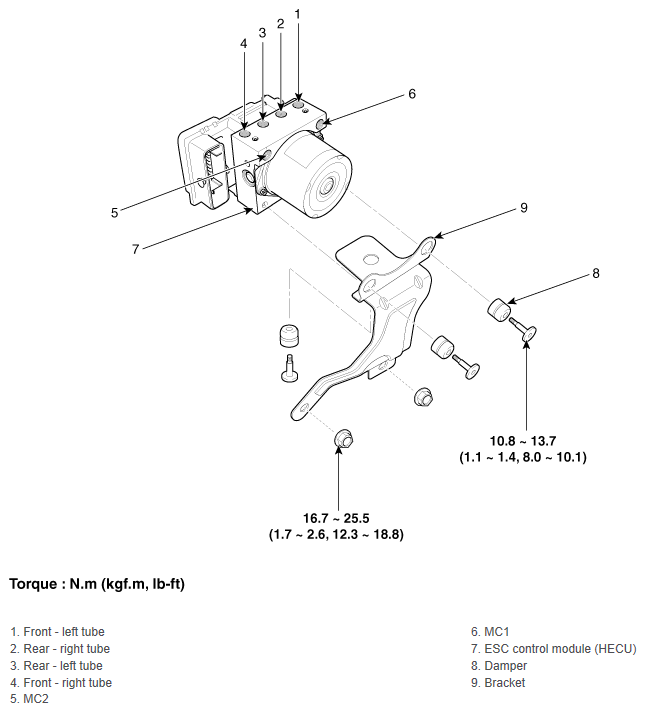

Fig 1: Locating ESC Control Module Components With Torque Specifications
G12125677Courtesy of HYUNDAI MOTOR AMERICA
