Signal Waveform & Data

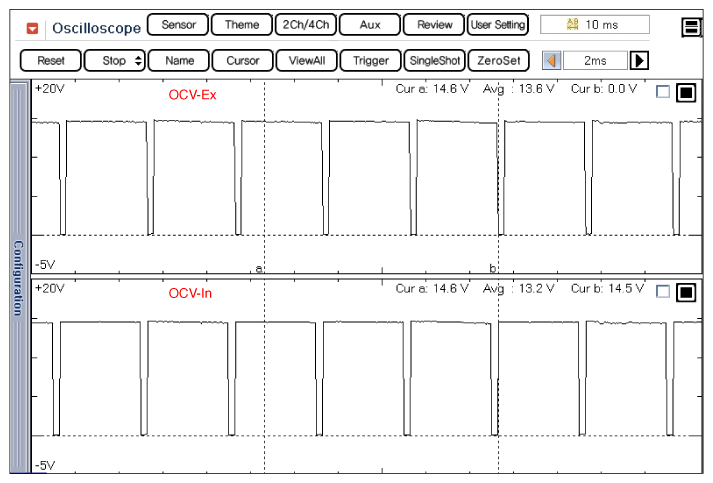

Fig 1: Scantool Display - Normal Waveform Of OCV At Idle (1 Of 2)
G12121111Courtesy of HYUNDAI MOTOR AMERICA

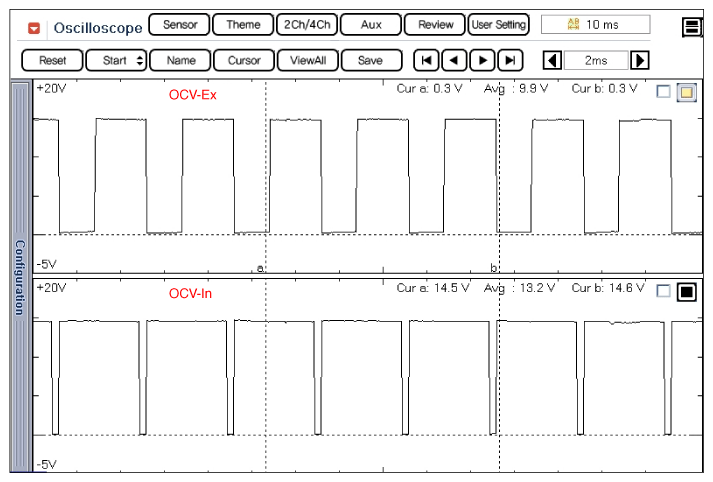

Fig 2: Scantool Display - Normal Waveform Of OCV At Acceleration (2 Of 2)
G12121112Courtesy of HYUNDAI MOTOR AMERICA
