Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC)
  2. Warm up the engine to normal operating temperature.
  3. Monitor the "TPS" parameter on the "Current Data"  with GDS.

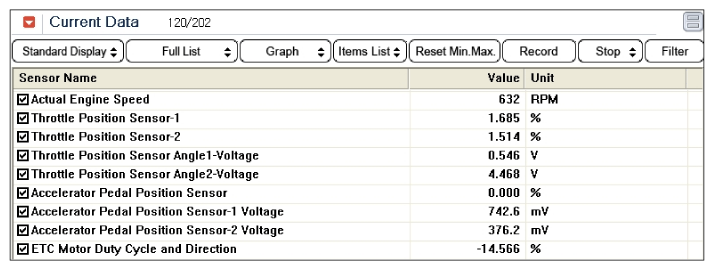

    Fig 1: Scantool Display - TPS Parameter On Current Data
    G12121232Courtesy of HYUNDAI MOTOR AMERICA
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
