Signal Waveform & Data

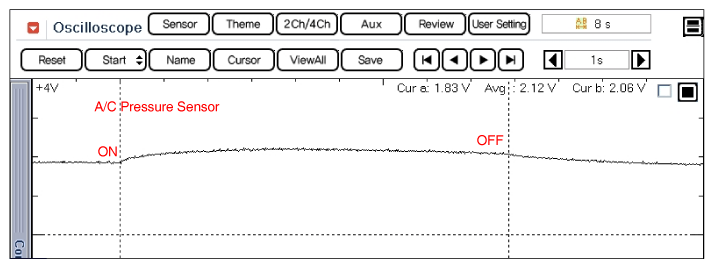

Fig 1: Normal Waveforms Of A/C Pressure Sensor During Time From Turning On A/C Switch To Turning Off
G12121354Courtesy of HYUNDAI MOTOR AMERICA
