Components And Components Location: Components

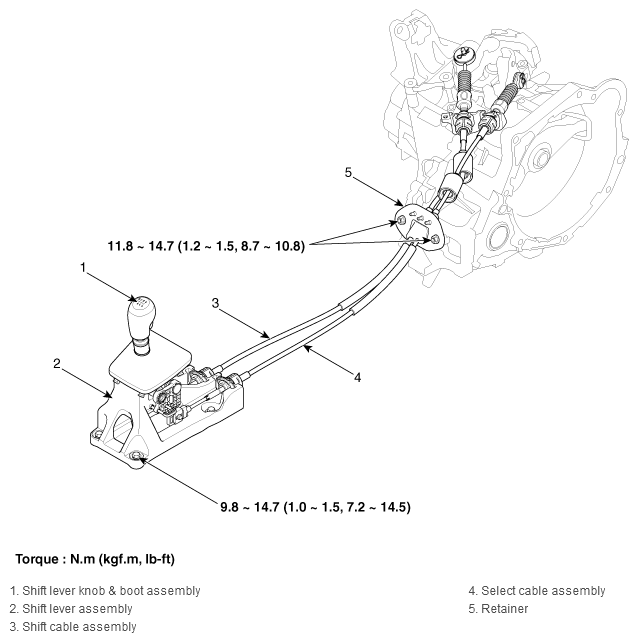

Fig 1: Shift Lever Components With Torque Specifications
G12129549Courtesy of HYUNDAI MOTOR AMERICA
