Main Crash Pad Replacement

CAUTION:

A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the following items.
- Front seat
  (Refer to "FRONT SEAT ")
- Front pillar trim
  (Refer to "INTERIOR TRIM ")
- Floor console assembly & Console side cover
  (Refer to "CONSOLE ")
- Front door scuff trim
  (Refer to "INTERIOR TRIM ")
- Cowl side trim
  (Refer to "INTERIOR TRIM ")
- Crash pad side cover
- Crash pad lower panel
- Cluster fascia upper panel & Cluster fascia lower panel
- Cluster assembly
- Center facia panel
- Audio assembly
- Glove box & Glove box housing
- Steering column
  (Refer to MDPS MOTOR .)
After loosening the mounting screws, then remove the start/stop button bezel (A).
Disconnect the start/stop button bezel connector (B).

Fig 1: Disconnecting Start/Stop Button Bezel Connector
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the crash pad center lower panel (A).

Fig 2: Removing Crash Pad Center Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A).

Fig 3: Disconnecting Connectors
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the side air vent duct [RH] (A).

Fig 4: Removing Side Air Vent Duct (RH)
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws and bolts, then remove the crash pad main lower panel (A).

Fig 5: Removing Crash Pad Main Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the smart key unit antenna connector (A).

Fig 6: Disconnecting Smart Key Unit Antenna Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the center speaker connector (A) and BCM unit connector (B).

Fig 7: Disconnecting Center Speaker Connector & BCM Unit Connector
Courtesy of HYUNDAI MOTOR AMERICA

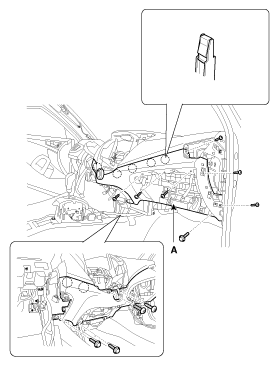

Loosen the mounting bolts (A).

Fig 8: Loosening Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the photo sensor (A).
Disconnect the photo sensor connector (B).

Fig 9: Disconnecting Photo Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA

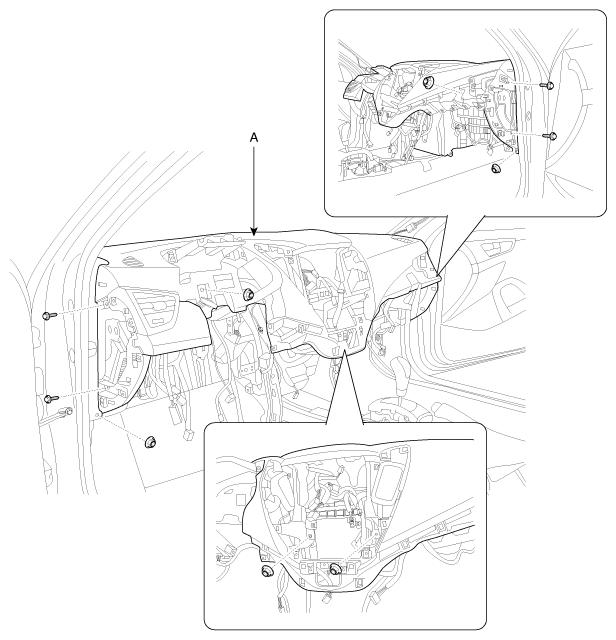

After loosening the mounting bolts and nuts, then remove the main crash pad assembly (A).

Fig 10: Removing Main Crash Pad Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the passenger's airbag connector (A).

Fig 11: Disconnecting Passenger Airbag Connector
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.

NOTE:

Make sure the crash pad fits onto the guide pins correctly.
Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
Enter the anti-theft code for the radio, then enter the customer's radio station presets.
