Components And Components Location: Components

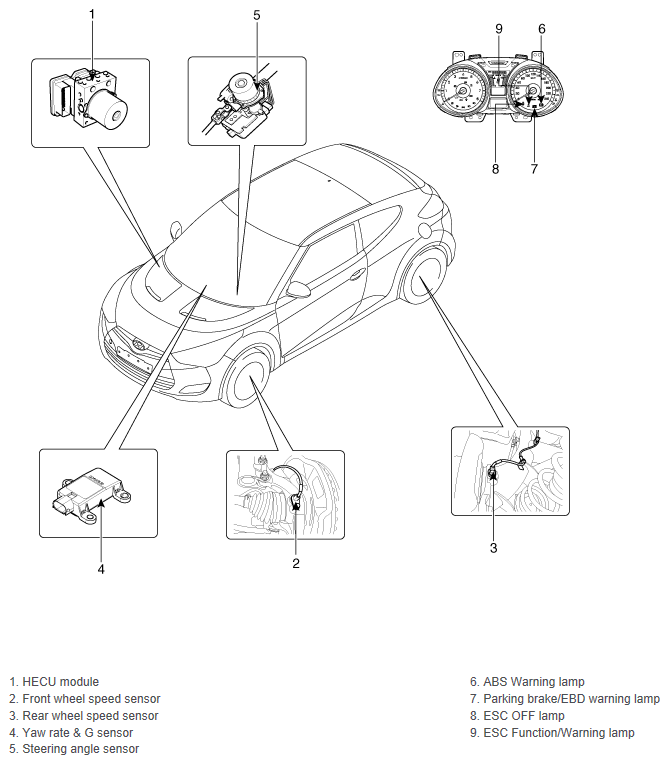

Fig 1: Locating Electronic Stability Control (ESC) System Components
G12125649Courtesy of HYUNDAI MOTOR AMERICA
