Circuit Diagram

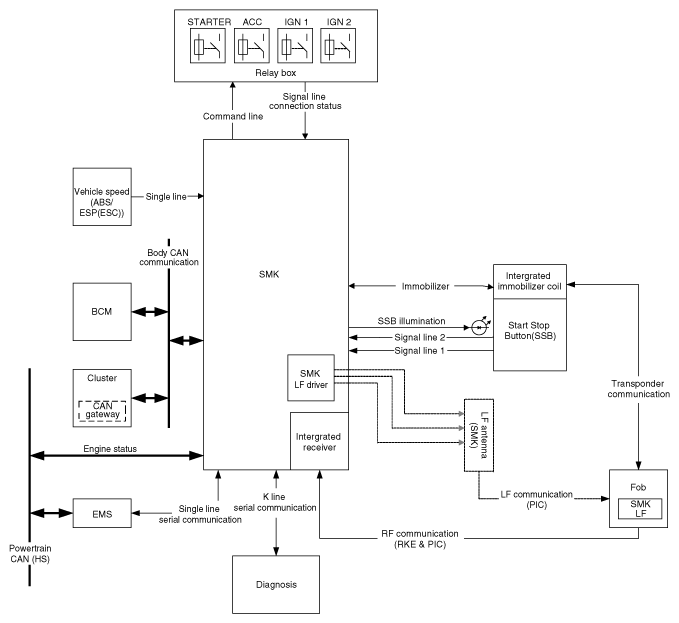

Fig 1: SMK Circuit Diagram (1 Of 2))
G12128783Courtesy of HYUNDAI MOTOR AMERICA

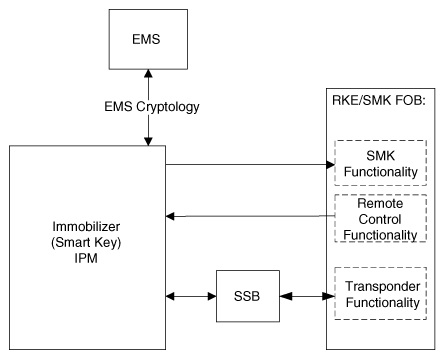

Fig 2: SMK Circuit Diagram (2 Of 2)
G12128784Courtesy of HYUNDAI MOTOR AMERICA
