Hyundai
>>
2017
>>
Veloster Base, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 1.6L GDI
>>
Crankshaft Position Sensor (CKPS)
>>
Schematic Diagrams
>>
Circuit Diagram
>>
[Non - ISG]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
[Non - ISG]

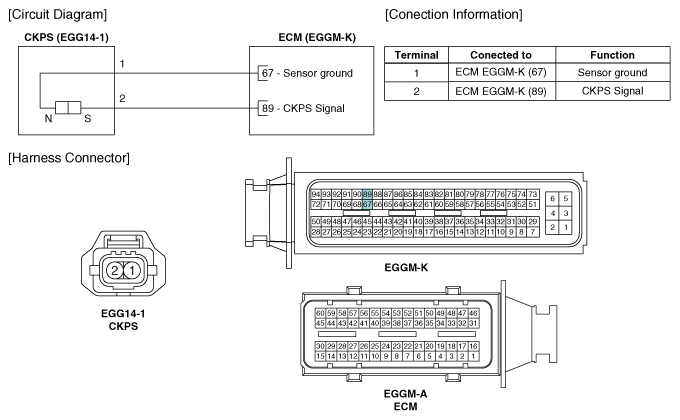

Fig 1: Crankshaft Position Sensor Circuit And Connector End View (Non - ISG)
