Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

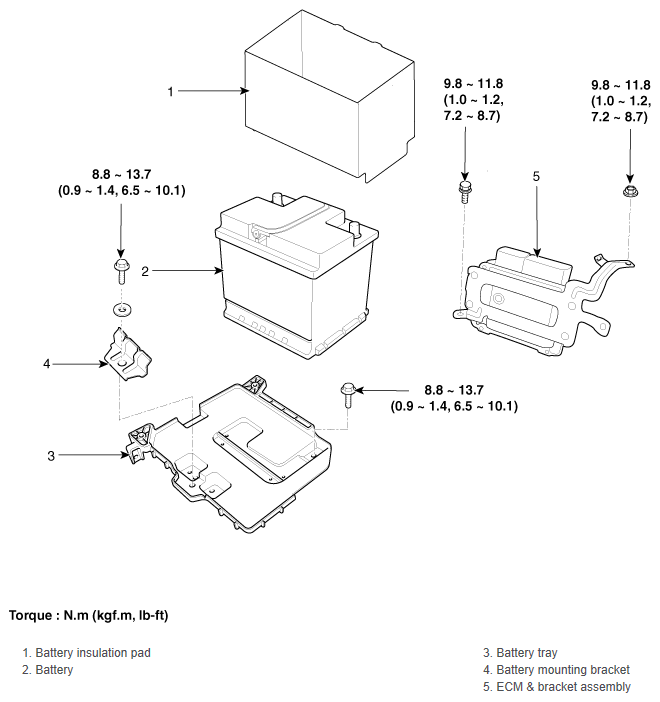

Fig 1: Locating Battery Components With Torque Specifications
G12124639Courtesy of HYUNDAI MOTOR AMERICA
