Components And Components Location: Components

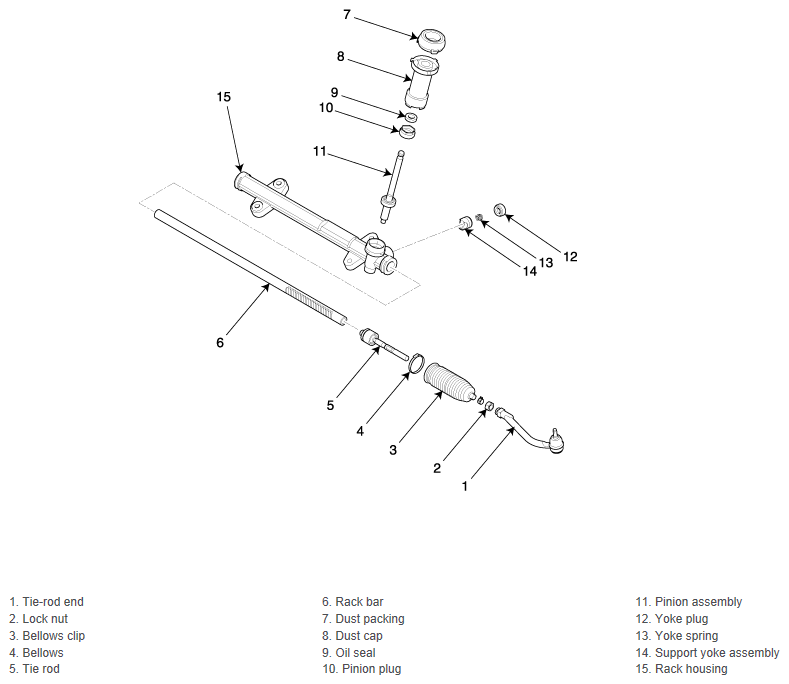

Fig 1: Locating Steering Gear Box Components
G12125441Courtesy of HYUNDAI MOTOR AMERICA
