Circuit Diagram: A/T

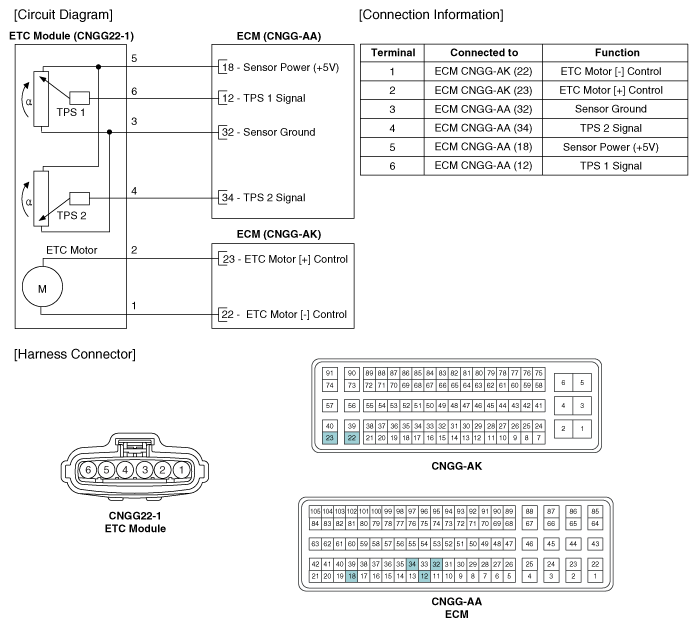

Fig 1: Electronic Throttle Control System Circuit Diagram & Connector Terminals (A/T)
G12124768Courtesy of HYUNDAI MOTOR AMERICA
