Circuit Diagram: A/T

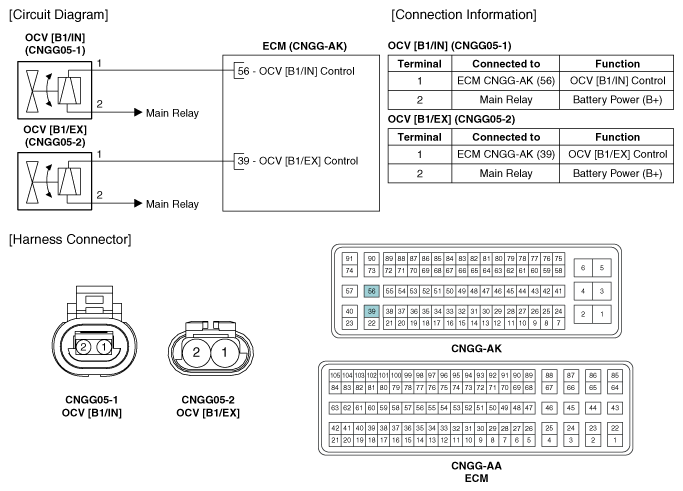

Fig 1: Continuous Variable Valve Timing Oil Control Valve Circuit Diagram & Connector Terminals
G12124851Courtesy of HYUNDAI MOTOR AMERICA
