Circuit Diagram: A/T

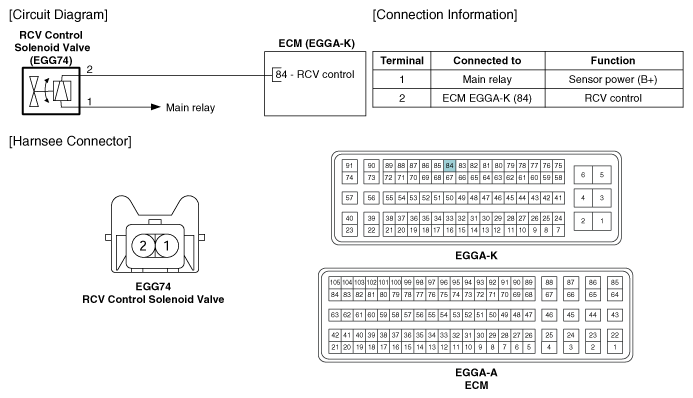

Fig 1: Recirculation Valve Control Solenoid Valve Circuit Diagram & Connector Terminals
G12124860Courtesy of HYUNDAI MOTOR AMERICA
