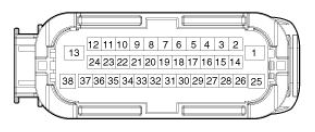

| 13 |
Ground for recirculation pump |
39 A |
10 A |
| 1 |
Voltage supply for pump motor |
39 A |
10 A |
| 25 |
Voltage supply for solenoid valves |
15 A |
2 A |
| 38 |
Ground for solenoid valves and ECU |
15 A |
2 A |
| 22 |
Signal wheel speed sensor FL |
16.8 mA |
5.9 mA |
| 33 |
Voltage supply for the active wheel speed sensor RL |
16.8 mA |
5.9 mA |
| 19 |
Voltage supply for the active wheel speed sensor RR |
16.8 mA |
5.9 mA |
| 18 |
Voltage supply for the active wheel speed sensor FR |
16.8 mA |
5.9 mA |
| 6 |
Signal wheel speed sensor FR |
16.8 mA |
5.9 mA |
| 14 |
CAN LOW |
30 mA |
20 mA |
| 34 |
Voltage supply for the active wheel speed sensor FL |
16.8 mA |
5.9 mA |
| 20 |
Signal wheel speed sensor RL |
16.8 mA |
5.9 mA |
| 32 |
Voltage for HECU |
1 A |
500 mA |
| 31 |
Signal wheel speed sensor RR |
16.8 mA |
5.9 mA |
| 30 |
Brake light switch |
10 mA |
5 mA |
| 26 |
CAN HIGH |
30 mA |
20 mA |
| 27 |
Wheel Speed Sensor Output |
Open Drain |
|
