Repair Procedures: Replacement

NOTE: If necessary replace the valve body or solenoid valves, hydraulic adjustment is needed, replace the automatic transaxle assembly.

NOTE: (Refer to Automatic Transaxle System - "AUTOMATIC TRANSAXLE ")

NOTE: After the automatic transaxle assembly exchange, input the hydraulic calibration information of TCM.

Perform the oil pressure characteristics input procedure.

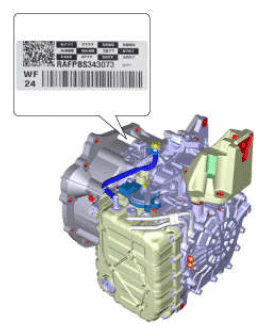

Oil pressure characteristics (bar code) location

Courtesy of HYUNDAI MOTOR AMERICA

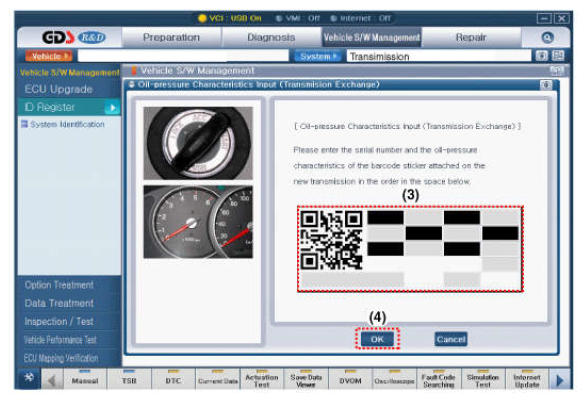

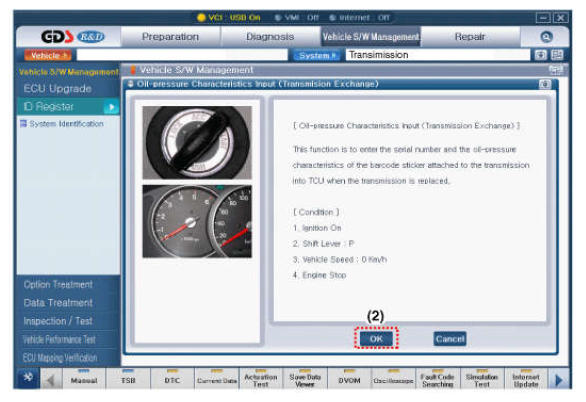

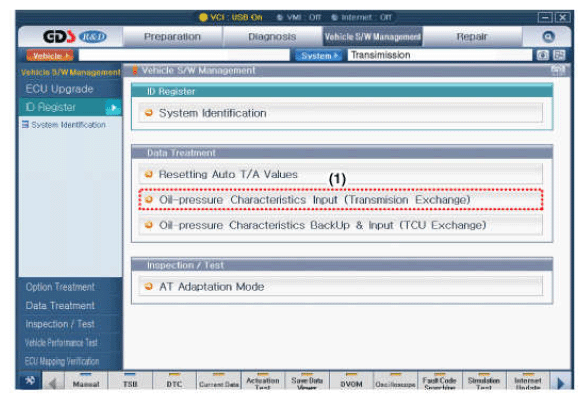

Oil-Pressure Characteristics Input (Automatic Transaxle Exchange)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
