Repair Procedures: Installation

CAUTION:

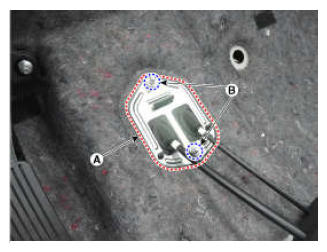

Place the shift lever and transaxle side lever in 4th shift position and insert the lever fixing pin (A).

Courtesy of HYUNDAI MOTOR AMERICA

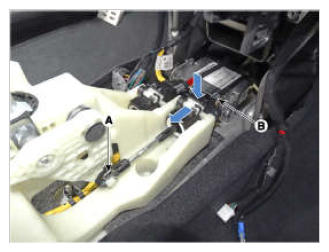

Install the retainer (A) and then tighten nut (B-2ea).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

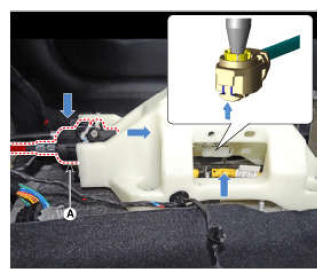

Install the select cable (B), and then fixing the snap pin (A).

Courtesy of HYUNDAI MOTOR AMERICA

Install the shift cable (A).

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

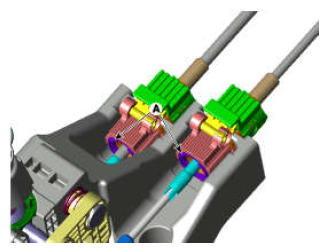

After installing the select cable and shift cable socket, check portion (A) to see if it projects outwards from the cap.

Courtesy of HYUNDAI MOTOR AMERICA

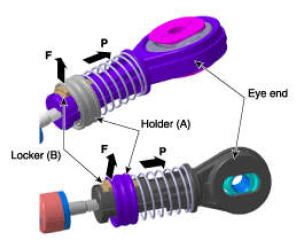

Move the locker (B) in the direction of "F" with pulling the holder (A) in the direction of "P".

Courtesy of HYUNDAI MOTOR AMERICA

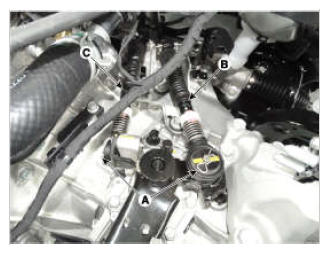

Install the shift cable (B) and select cable (C), and then fixing the snap pin (A-2ea).

Courtesy of HYUNDAI MOTOR AMERICA
Tighten the holder (A) to the "P" directions after fixing the rockers (B) in the "F" direction.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the shift lever 4th fixed pin (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install the Floor Console Assembly.
(Refer to Body - "FLOOR CONSOLE ")
Install the Battery and Battery Tray.
(Refer to Engine Electrical System - "BATTERY ")
Install the Engine Control Module (ECM).
(Refer to Engine Control System - "ENGINE CONTROL MODULE (ECM) ")
Install the Air Cleaner Assembly and Air Duct.
(Refer to Engine Mechanical System - "AIR CLEANER )
CAUTION:
- Check operating of lever of transaxle side when operating shift lever after assembly. (1-6, R)
- If there is sticky feel, adjust the control cable length again.
(Refer to Control Cable - "INSTALLATION ")
