Repair Procedures: Removal

  1. Move the shift lever to 4th gear.
  2. Remove the Air Cleaner Assembly and Air Duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the Battery and Battery Tray.

    (Refer to Engine Electrical System - "BATTERY ")

  4. Remove the Engine Control Module (ECM).

    (Refer to Engine Control System - "ENGINE CONTROL MODULE (ECM) ")

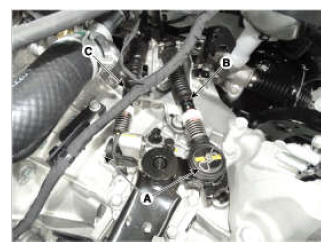

  5. Disconnect the shift cable (B) and the select cable (C) after removing the snap pin (A).
    G12598719Courtesy of HYUNDAI MOTOR AMERICA

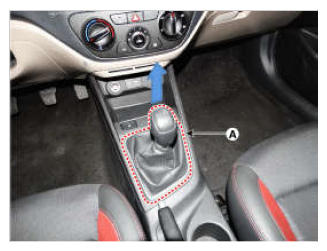

  6. Remove the shift lever knob & boots (A) pull both of it up.
    G12598720Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the Floor Console Assembly.

    (Refer to Body - "FLOOR CONSOLE ")

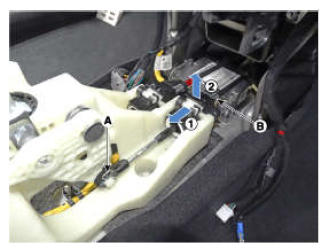

  8. Disconnect the select cable (B), after removing the snap pin (A).
    G12598721Courtesy of HYUNDAI MOTOR AMERICA

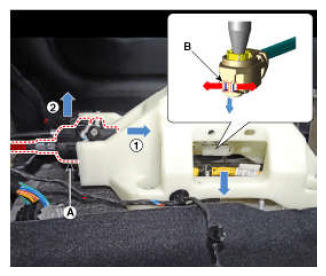

  9. Remove the shift cable.
    1. Remove the cable socket (A), after release the lock.
    2. Spread the clip, in the shape of a "U" (B), from the cable end by spreading it towards both sides.
    G12598722Courtesy of HYUNDAI MOTOR AMERICA

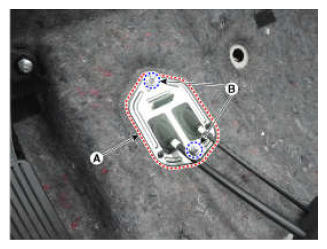

  10. Remove the retainer (A) after removing the nut (B-2ea).
G12598723Courtesy of HYUNDAI MOTOR AMERICA
