Repair Procedures: Installation
- To install, reverse the removal procedure.NOTE: Install the control shaft complete, after check the changes below.
- Main changes of the M/T case
- A: 3 poppet ball taps
- B: 1 poppet ball tap for 5th/6th shift rail
- C: 2 poppet ball taps for (1st/2nd, 3rd/4th) shift rails have been deleted.
- D: The number of poppet balls has been reduced from 3EA to 1EA and the grooves on the 1st/2nd, 3rd/4th shift rails have been deleted.
- E: The shift groove of control finger has been changed in shape.

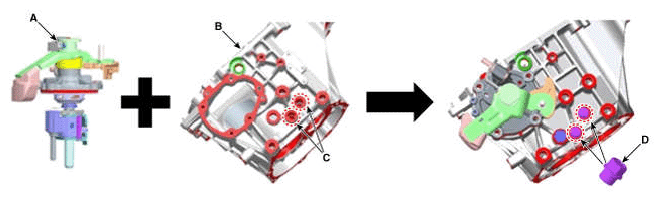

M/T Type Previous New Case Control Shaft Complete - When trying to replace the previously designed control shaft complete with a newly designed one from the previously designed M/T case.
- Replace with a newly designed control shaft complete (A), Remove the poppet ball (C-2ea) for 1st/2nd, 3rd/4th shift rails from the previously designed M/T case (B) and then assemble the seal bolt (D-2ea) to that position.

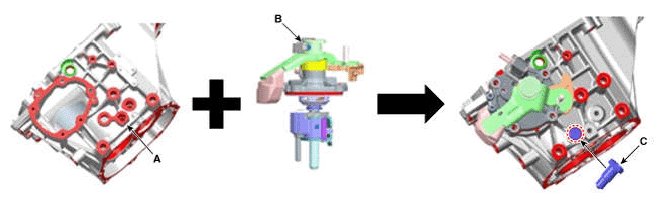

- When trying to replace the previously designed M/T case with a newly designed one.
- Be sure to also replace the previously designed control shaft complete (B) with A newly designed one as well as the M/ T case (A).
- Assemble poppet bolt (C-1ea) to the newly designed M/T case (A) (Previous: 3ea).
- When installing, set control shaft lever to neutral position.
- When installing, apply the sealant as displayed in the image.
Specified Sealant: MS 721-40 or MS721-38
- Main changes of the M/T case
- After installing, check to be sure that this part operates as designed at each range of T/M side corresponding to each position of shift lever.
