Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

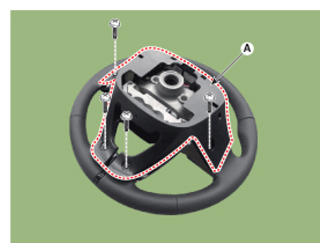

  3. Remove the screws from the steering back cover (A).
    G12643253Courtesy of HYUNDAI MOTOR AMERICA

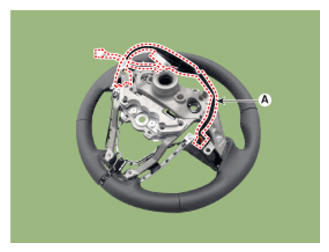

  4. Remove the steering remote control connector (A).
    G12643254Courtesy of HYUNDAI MOTOR AMERICA

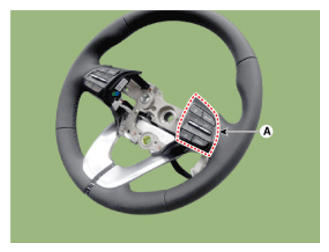

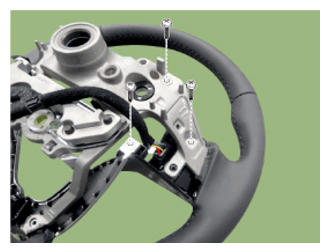

  5. Remove the steering remote control (A) after loosening the screws.
    G12643255Courtesy of HYUNDAI MOTOR AMERICA
G12643256Courtesy of HYUNDAI MOTOR AMERICA
