Repair Procedures: Removal

  1. Remove the Front Bumper Cover.

    (Refer to Body - "FRONT BUMPER COVER ")

  2. Remove the Horn (A) after disconnecting the connector (B) and loosening the Mounting Bolt.

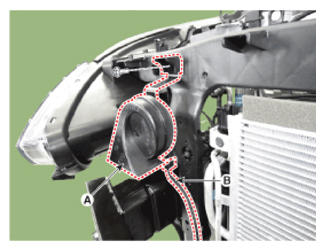

    [High-Pitch Horn]

    G12645085Courtesy of HYUNDAI MOTOR AMERICA

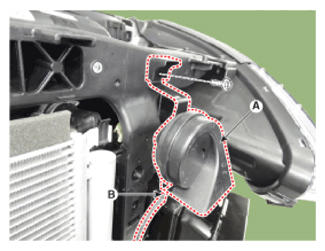

    [Low-Pitch Horn]

    G12645086Courtesy of HYUNDAI MOTOR AMERICA
