Repair Procedures: Removal

  1. Disconnect the Negative (-) Battery Terminal.
  2. Remove the Crash Pad Side Garnish (RH).

    (Refer to Body - "GLOVE BOX UPPER COVER ASSEMBLY ")

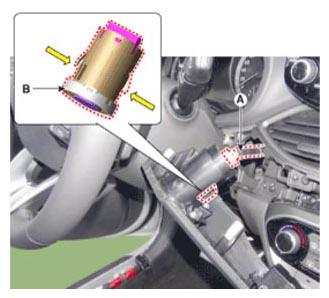

  3. Remove the Start/Stop Button (B) after disconnecting the start/stop button connector (A).
    G12645693Courtesy of HYUNDAI MOTOR AMERICA
