Heated Steering Wheel Control Module (Body Control Module (BCM))
- Disconnect the negative (-) battery terminal.
- Remove the glove box.
(Refer to Body - "GLOVE BOX UPPER COVER ASSEMBLY ")
- Remove the Smart Key Unit.
(Refer to Body - "SMART KEY UNIT ")

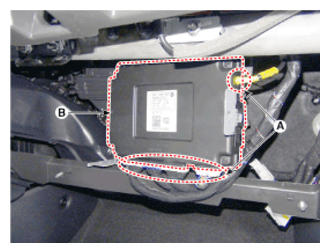

- Disconnect the Body Control Module Connectors (A).
- Disconnect the body control module connectors (A) and then remove the BCM (B).
