Repair Procedures: Removal

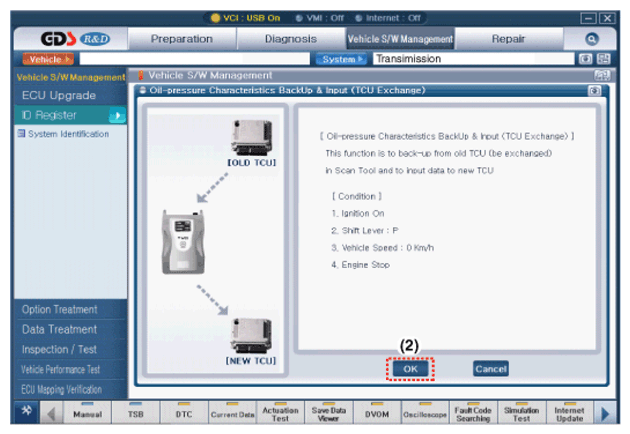

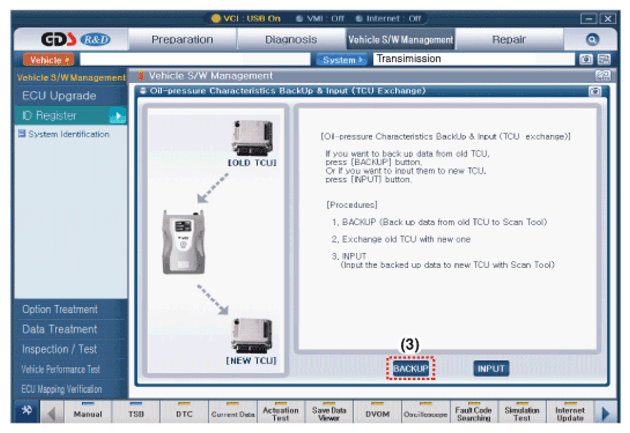

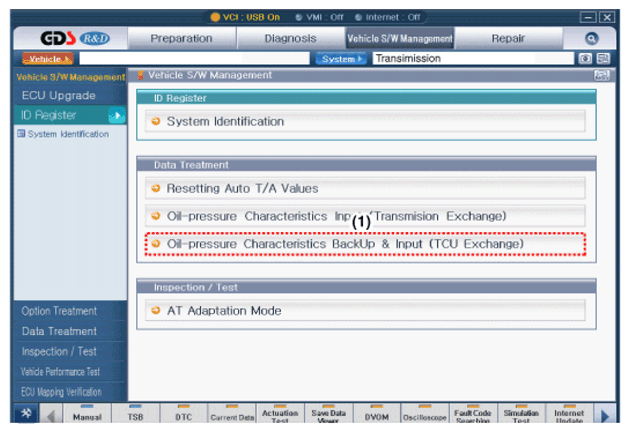

  1. Oil Pressure Characteristics Backup (TCM Exchange)
    G12646916Courtesy of HYUNDAI MOTOR AMERICA
    G12646917Courtesy of HYUNDAI MOTOR AMERICA
    G12646918Courtesy of HYUNDAI MOTOR AMERICA
  2. Turn ignition switch OFF.
  3. Disconnect the negative (-) battery cable.
  4. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

  5. Disconnect the TCM connector (A).
    G12646919Courtesy of HYUNDAI MOTOR AMERICA

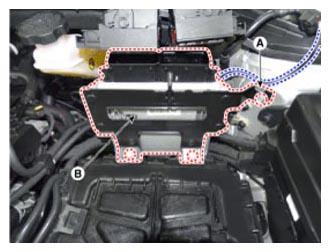

  6. Remove the fixing clip (A) of wiring.
  7. Remove the TCM (B).
