Repair Procedures: Inspection

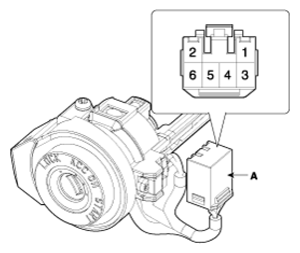

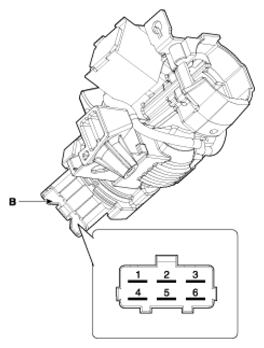

  1. Disconnect the Key Warning Switch Connector (A) and Ignition Switch Connector (B) from the Steering Column.
    G12645694Courtesy of HYUNDAI MOTOR AMERICA
    G12645695Courtesy of HYUNDAI MOTOR AMERICA

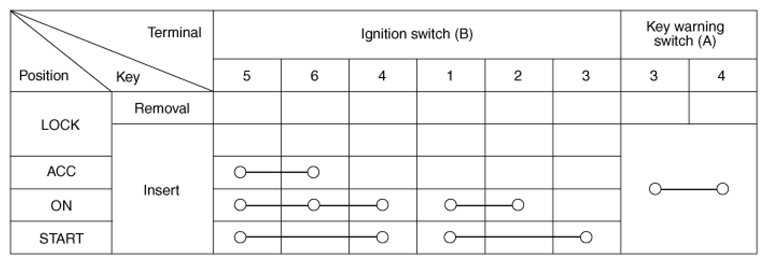

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the Switch.
    G12645696Courtesy of HYUNDAI MOTOR AMERICA
