Repair Procedures: Installation

WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the front tires straight-ahead.
  2. Turn the ignition switch OFF.
  3. Disconnect the battery negative cable from the battery and wait for at least three minutes before beginning the work.
  4. Connect the clock spring harness connector and horn harness connector to the clock spring.
  5. Factory setting for the clock spring is neutral.
    1. If white cable is visible through the product's 10 O' Clock Neutral Check Window, then the spring is at neutral.
    2. If white cable is not visible through the product's 10 O' Clock Neutral Check Window, then manually adjust the setting to neutral.
      Neutral Check Window: Normal Neutral Check Window: Fault
      G12026543
      G12026544
      White cable is visible through 10 O' Clock Neutral Check Window White cable is not visible through 10 O' Clock Neutral Check Window
  6. Clock spring manual neutral setting procedure.
    1. Press the Auto Lock at 6 O' Clock and turn clockwise 3 rotations.
      Fig 1: Turning Auto Lock At 6 O' Clock Clockwise
      G12026545Courtesy of HYUNDAI MOTOR AMERICA
    2. Press the Auto Lock at 6 O' Clock and turn counter-clockwise 3 rotations.
    3. If white cable is visible through the 10 O' Clock Neutral Check Window, then the spring is set to neutral.

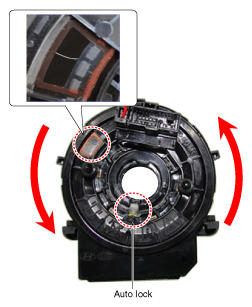

    Fig 2: Turning Auto Lock At 6 O' Clock Counter-Clockwise
    G12026546Courtesy of HYUNDAI MOTOR AMERICA
  7. Install the steering wheel column shroud and the steering wheel. (Refer to Steering System - "MOTOR DRIVEN POWER STEERING ")
  8. Connect the Driver Airbag (DAB) module connector and horn connector, and then install the Driver Airbag (DAB) module on the steering wheel.
    NOTE:
    • When install the Driver Airbag (DAB) module, Fix the horn wire and DAB inflator wire tightly with wire clip (A).
    Fig 3: Locating Wire Clip
    G12026547Courtesy of HYUNDAI MOTOR AMERICA
  9. Connect the battery negative cable.
  10. After installing the airbag, confirm proper system operation:
    • Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
    • Make sure horn button works.
